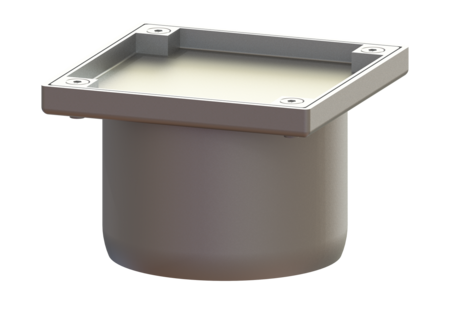

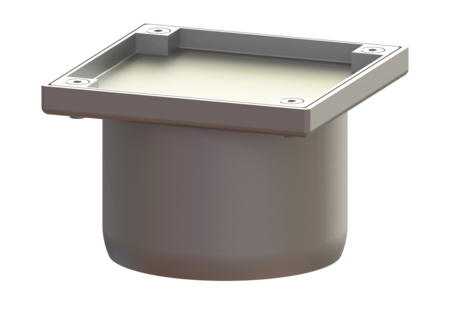

Upper section 125 150 x150 stainl.st.
KESSEL, surface, length 150 mm, width 150 mm, waterproofing layer upper section by Adhesive flange (suitable for moisture barriers), type of cover tileable cover plate, Cover Stainless steel 14301, locking screwed
| Item no. | 54910 |
|---|---|
| GTIN | 4026092072387 |
| Price group | 70 |
Variant System: 125 Waterproofing layer on the upper section: Adhesive flange (suitable for moisture barriers) Dimensions Net weight: 1,41 kg Gross weight: 1,51 kg Length: 146 mm Width: 146 mm Height: 100 mm Packaging dimension: length: 215 mm Packaging dimension: width: 190 mm Packaging dimension: height: 120 mm Coverage features Type of cover: tileable cover plate Cover material: Stainless steel 14301 Height of cover: 19 mm Locking: screwed Load class: L 15 (EN 1253-1) Tightness: odour-tight Rim width: 150 mm Rim length: 150 mm Max. flooring height: 19 mm Upper section material: Stainless steel 14301
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Manuals | |
|---|---|
| CAD Data |
- Cover material (abdeckung_material):
Stainless steel 14301
- Upper section material (material_aufsatzstueck):
Stainless steel 14301
- Type of cover (abdeckungsart): tileable cover plate
- Load class (belastungsklasse): L 15 (EN 1253-1)
- Locking (verriegelung): screwed
- Waterproofing layer on the upper section (abdichtung_aufsatzstueck): Adhesive flange (suitable for moisture barriers)
