Ferrofix upper section

Sys200, slot grat, 304SST, 300 x 300 mm

57415
PDF product data sheet

KESSEL Ferrofix upper section, height 115 mm, type of cover Slotted cover, locking unscrewed

  • Made of a particularly hygienic and mechanically highly resistant stainless steel
  • Multiple combinations with suitable drain bodies.
Item no. 57415
GTIN 4026092010471
Price group 70

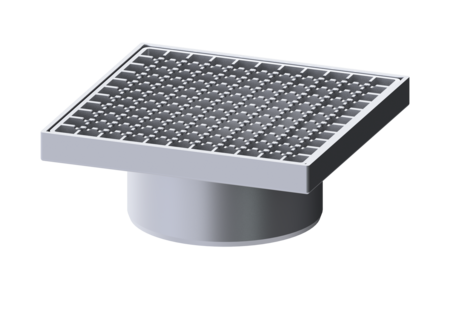

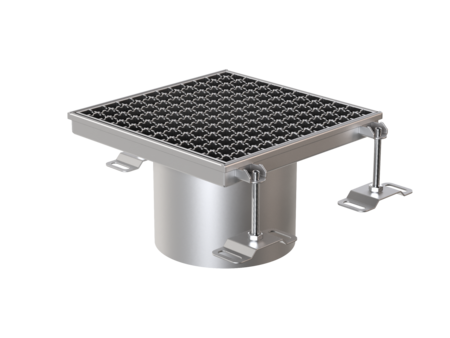

    Ferrofix upper section Sys200, slot grat, 304SST, 300 x 300 mm
    Used in combination with a drain body of the KESSEL modular system 200, the stainless steel upper section is suitable for indoor point drainage. Variant System: 200 Note on installation depth: For load class M 125, on-site shimming necessary Dimensions Net weight: 7,97 kg Gross weight: 8,48 kg Length: 300 mm Width: 300 mm Height: 115 mm Packaging dimension: length: 360 mm Packaging dimension: width: 360 mm Packaging dimension: height: 175 mm Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Width of cover: 282 mm Height of cover: 28 mm Length of cover: 282 mm Surface: pickled Locking: unscrewed Load class: M 125 (EN 1253-1) Upper section material: Stainless steel 14301 Mesh size: 23 x 23 mm
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    • Cover material (abdeckung_material): Stainless steel 14301
    • Upper section material (material_aufsatzstueck): Stainless steel 14301
