Gutter drain

DN 100, Horizontal outlet

67945
PDF product data sheet

KESSEL Gutter drain, System 200, nominal size (DN) 100, load class K 3, outside diameter (OD) 110 mm, discharge rate (l/s) 4,5, outlet horizontal, socket lateral, shape of upper section round, volume 32,08 dm³

  • The variable solution for connecting to the sewer
Item no. 67945
GTIN 4026092001806
Price group 10

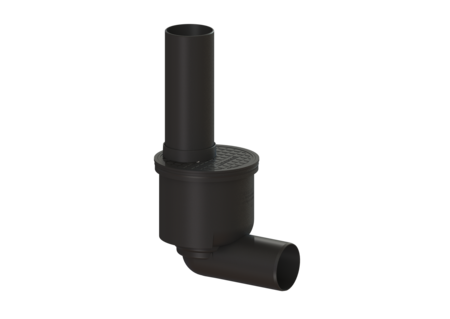

    Gutter drain DN 100, Horizontal outlet
    The polymer gutter drain is equipped with a sludge bucket, a rain inlet cover, a protective pipe and a wall fastening. Variant System: 200 Contents of sludge trap: yes Discharge rate (l/s) with 20 mm threshold: 4,5 Outlet: horizontal General characteristics Standard: EN 752 Nominal size (DN): 100 Outer diameter (OD): 110 mm Outlet: horizontal Odour trap: no Dimensions Net weight: 2,22 kg Gross weight: 2,4 kg Diameter: 235 mm Length: 320 mm Width: 245 mm Height: 580 mm Packaging dimension: length: 330 mm Packaging dimension: width: 240 mm Packaging dimension: height: 405 mm Tank/drain body Number of outlets: 1 Material of drain body: Polymer Socket version: lateral Coverage features Type of cover: Rain drain cover Cover material: Polymer Colour of cover: black Surface: EDM Load class: K 3 (EN 1253-1) Shape of upper section: round Contents of sludge trap: yes
      Title Item no.
      Title Item no.
      Title Item no.
    67400 Extension section Polymer, 40 - 150 mm 67400 Show
    67500 Extension section System 200, Polymer 67500 Show
    67600 Extension section System 200, Side inlet DN 100 67600 Show
      Title Item no.
    67000 Drain body, yard/gutter drain DN 100, Horizontal outlet 67000 Show
    67300 Sludge bucket System 200, PE-HD 67300 Show
    67750 Upper section, gutter drain Protective pipe DN 100, closed cover 67750 Show
    67800 Wall mounting Polymer, for gutter drains 67800 Show
    • Nominal size (DN) (nennweite): 100
    • Material of drain body (material_grundkoerper): Polymer
    • Cover material (abdeckung_material): Polymer
    • Socket version (stutzen_ausfuehrung): lateral
    • Type of cover (abdeckungsart): Rain drain cover
    • Odour trap (geruchsverschluss): no
    • Contents of sludge trap (schlammeimer): yes
