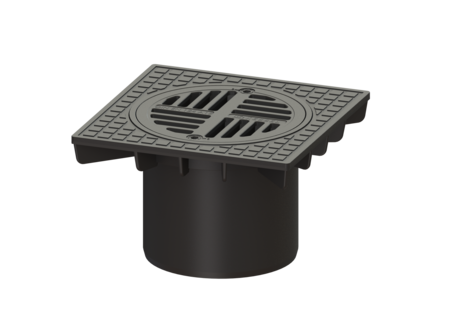

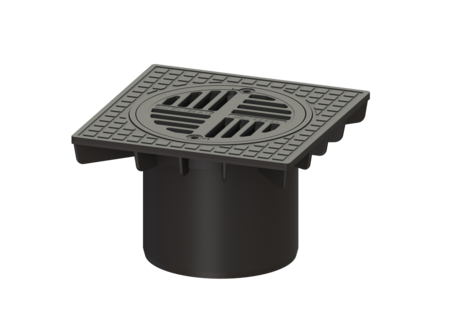

Upper section
with slotted cover d: 218 mm, A/L15
KESSEL Upper section, surface, length 300 mm, width 300 mm, locking, design cover, Cover Polymer
- Multiple combinations with suitable drain bodies
| Item no. | 67986 |
|---|---|
| GTIN | 4026092085493 |
| Price group | 10 |
Upper section with slotted cover d: 218 mm, A/L15
The polymer upper section is suitable for LW 400 chamber systems and is equipped with a clamping ring and a hanger for sludge buckets. Continuously height-adjustable by 440 mm. If installed in roads, parking areas and comparable hard-surfaced traffic areas for trucks (Class D), the upper section must be underlaid on site with an approx. 15 cm thick reinforced supporting slab with at least 0.80 x 0.80 m made of B35 concrete. The exact design of the concrete slab must be calculated structurally according to the circumstances on site. A standard formwork and reinforcement drawing can be provided. Variant System: 200 Dimensions Net weight: 4,4 kg Gross weight: 4,9 kg Diameter: 218 mm Type of height adjustability: vertically adjustable upper section Packaging dimension: length: 340 mm Packaging dimension: width: 340 mm Packaging dimension: height: 215 mm Coverage features Cover material: Polymer Colour of cover: black Load class: A 15 (EN 124) / L 15 (EN 1253-1) Rim width: 300 mm Rim length: 300 mm Upper section material: Polymer
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| CAD Data |
|---|
- Cover material (abdeckung_material):
Polymer
- Upper section material (material_aufsatzstueck):
Polymer
- (nennweite):
- (abdeckungsart):
- Load class (belastungsklasse): A 15 (EN 124) / L 15 (EN 1253-1)
- Socket version (stutzen_ausfuehrung):
