Gutter drain

DN 100, Vertical outlet

67997
PDF product data sheet

KESSEL Gutter drain, System, nominal size (DN) 100, load class K 3, outside diameter (OD) 110 mm, discharge rate (l/s) 4,5, outlet vertical, socket vertical, shape of upper section round, volume 23,52 dm³

  • The variable solution for connecting to the sewer
Item no. 67997
GTIN 4026092006207
Price group 10

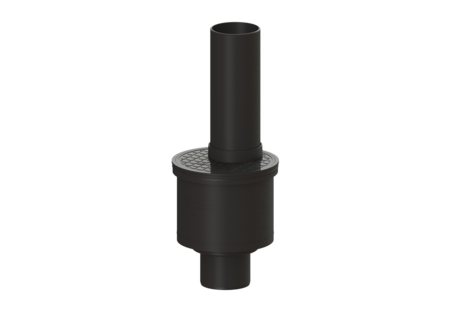

    Gutter drain DN 100, Vertical outlet
    The polymer gutter drain is equipped with a sludge bucket, a rain inlet cover, a protective pipe and a wall fastening. Variant Contents of sludge trap: yes Discharge rate (l/s) with 20 mm threshold: 4,5 Outlet: vertical General characteristics Standard: EN 752 Nominal size (DN): 100 Outer diameter (OD): 110 mm Outlet: vertical Odour trap: no Dimensions Net weight: 2,24 kg Gross weight: 2,24 kg Packaging dimension: length: 320 mm Packaging dimension: width: 300 mm Packaging dimension: height: 245 mm Tank/drain body Number of outlets: 1 Material of drain body: Polymer Socket version: vertical Coverage features Type of cover: Rain drain cover Cover material: Polymer Colour of cover: black Surface: EDM Load class: K 3 (EN 1253-1) Shape of upper section: round Contents of sludge trap: yes
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    850134 Slotted cover round, d: 362 mm, Polymer 850134 Show
    • Nominal size (DN) (nennweite): 100
    • Material of drain body (material_grundkoerper): Polymer
    • Cover material (abdeckung_material): Polymer
    • Socket version (stutzen_ausfuehrung): vertical
    • Type of cover (abdeckungsart): Rain drain cover
    • Odour trap (geruchsverschluss): no
    • Contents of sludge trap (schlammeimer): yes
