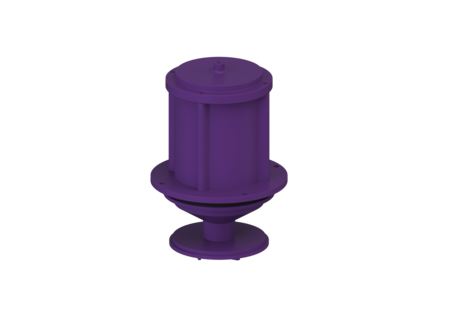

Pump drive SPF 3000
400 V, S3, 10 m cable
Pump drive with multi-vane impeller for faecal wastewater
| Item no. | 680221 |
|---|---|
| GTIN | 4026092066805 |
| Price group | 90 |
Pump drive SPF 3000 400 V, S3, 10 m cable
Pump drive with multi-vane impeller for faecal wastewater General characteristics Type of wastewater: with sewage Dimensions Net weight: 25,2 kg Gross weight: 28 kg Packaging dimension: length: 585 mm Packaging dimension: width: 350 mm Packaging dimension: height: 380 mm Pumping device Pump: SPF 3000 Connection type: Direct connection Rated current: 5,4 A Protection class: I Run dry safe: no Protection class (pump): IP 68 (3m/48h) Temperature monitoring: controlled via control unit Max. temperature (permanent) of conveyed material: 40 °C Max. pumping height: 16 m Speed: 2845 U/min Power P1: 3,2 kW Power P2: 2,7 kW Operating mode: S3 - 50 % Type of pump connection cable: H07RN-F 7G 1.5 mm² Length of mains cable for pump: 5 m Control Mains frequency: 50 Hz Operating voltage: 400 V Connection type: Direct connection
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Manuals | |
|---|---|
| Test Reports and Certificates | |
| Declaration of Conformity |
- Type of wastewater (abwasserart_de):
with sewage
