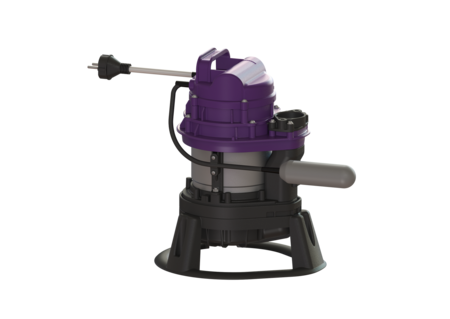

Replacement pump Aquadive GTF1200
with float switch, 10 m
Replacement pump, Aquadive GTF 1200 with floater for pumping station
| Item no. | 680594 |
|---|---|
| GTIN | 4026092078808 |
| Price group | 90 |
Replacement pump Aquadive GTF1200 with float switch, 10 m
Replacement pump, Aquadive GTF 1200 with floater for pumping station Variant Pump control: Float switch General characteristics Cable length: 10 m ATEX: no Dimensions Net weight: 11,44 kg Gross weight: 11,44 kg Packaging dimension: length: 379 mm Packaging dimension: width: 326 mm Packaging dimension: height: 293 mm Pumping device Pump: GTF 1200 Connection type: Schuko (earthed contact) 2-pin Operating voltage: 230 V Mains frequency: 50 Hz Rated current: 6,2 A Protection class: I Insulation class: F Cos phi - power factor: 0,98 Protection class (pump): IP 68 Max. temperature (permanent) of conveyed material: 35 °C Max. pumping height: 9 m Speed: 2650 U/min Power P1: 1,4 kW Power P2: 0,84 kW Operating mode: S3 - 50 % Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Length of mains cable for pump: 10 m Control Connection type: Schuko (earthed contact) 2-pin Type of fuse required (electrical protection): C 16 A
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Manuals | |
|---|---|
| Test Reports and Certificates | |
| Declaration of Conformity |
