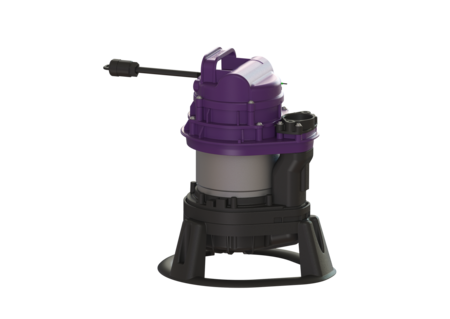

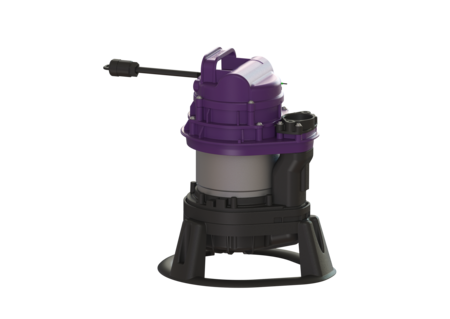

Replacement pump Aquadive GTF1200
without float switch, 10 m
Replacement pump, Aquadive GTF 1200 without floater for pumping station
| Item no. | 680595 |
|---|---|
| GTIN | 4026092078815 |
| Price group | 90 |
Replacement pump Aquadive GTF1200 without float switch, 10 m
Replacement pump, Aquadive GTF 1200 without floater for pumping station Variant Pump control: Control unit General characteristics Cable length: 10 m ATEX: no Dimensions Net weight: 11,19 kg Gross weight: 11,19 kg Packaging dimension: length: 379 mm Packaging dimension: width: 326 mm Packaging dimension: height: 293 mm Pumping device Pump: GTF 1200 Connection type: Schuko (earthed contact) 2-pin Operating voltage: 230 V Mains frequency: 50 Hz Rated current: 6,2 A Protection class: I Insulation class: F Cos phi - power factor: 0,98 Protection class (pump): IP 68 Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 35 °C Max. pumping height: 9 m Speed: 2650 U/min Power P1: 1,4 kW Power P2: 0,84 kW Operating mode: S1 Type of fuse required (electrical protection): Fuse protection through control unit 230 V Type of pump connection cable: H07RN-F 3G 1.5 mm² Length of mains cable for pump: 5 m Control Connection type: Schuko (earthed contact) 2-pin Type of fuse required (electrical protection): Fuse protection through control unit 230 V
