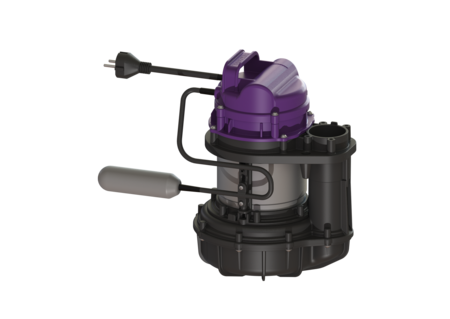

Replacement pump STF 1300
230 V, with float switch
Replacement pump STF 1300 230 V, with float switch For wastewater with sewage
| Item no. | 680803 |
|---|---|
| GTIN | 4026092084908 |
| Price group | 90 |
Replacement pump STF 1300 230 V, with float switch
Replacement pump STF 1300 230 V, with float switch For wastewater with sewage Variant Pump control: Float switch General characteristics Type of wastewater: with sewage Cable length: 10 m ATEX: no Dimensions Net weight: 3,75 kg Gross weight: 3,75 kg Packaging dimension: length: 379 mm Packaging dimension: width: 326 mm Packaging dimension: height: 293 mm Pumping device Pump: SPF 1300 Number of pumps: 1 Operating voltage: 230 V Mains frequency: 50 Hz Rated current: 6 A Protection class (pump): IP 68 (3m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 35 °C Max. pumping height: 10 m Speed: 2650 U/min Power P1: 1,3 kW Power P2: 0,8 kW Operating mode: S3 - 50 % Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Length of mains cable for pump: 10 m Control Type of fuse required (electrical protection): C 16 A
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
- Type of wastewater (abwasserart_de):
with sewage
