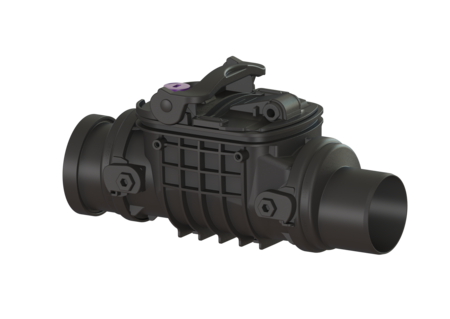

Staufix clean out
DN 90, exposed
KESSEL Staufix clean out, wastewater for wastewater with and without sewage, nominal size (DN) 90, cover locking One-handed closure, exposed drainage pipe, type of cover Lockable cover
- Simple conversion to Staufix type 1
- Own gradient only 8 mm
- Quick and toolless access for cleaning
| Item no. | 700090 |
|---|---|
| GTIN | 4026092075852 |
| Price group | 10 |
Staufix clean out DN 90, exposed
The clean out for faecal and faecal-free wastewater makes easy access to wastewater pipes possible for inspection and maintenance work. Thanks to the modular KESSEL system, existing systems can easily be supplemented by up to two flaps and one emergency closure or be converted to the StaufixControl backwater valve. General characteristics Colour: black Nominal size (DN): 90 Outer diameter (OD): 90 mm Type of wastewater: for wastewater with and without sewage Installation situation: exposed drainage pipe Delivery state: installation-ready Dimensions Net weight: 1,2 kg Gross weight: 3,8 kg Vertical drop between inlet and outlet: 8 mm Length: 385 mm Width: 167 mm Height: 230 mm Packaging dimension: length: 386 mm Packaging dimension: width: 163 mm Packaging dimension: height: 198 mm Coverage features Type of cover: Lockable cover Cover locking: One-handed closure
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Manuals | |
|---|---|
| CAD Data | |
| Test Reports and Certificates |
- Nominal size (DN) (nennweite): 90
- Installation situation (einbausituation):
exposed drainage pipe
- Type of wastewater (abwasserart_de):
for wastewater with and without sewage
- Length (laenge): 385 mm
- Width (breite): 167 mm
