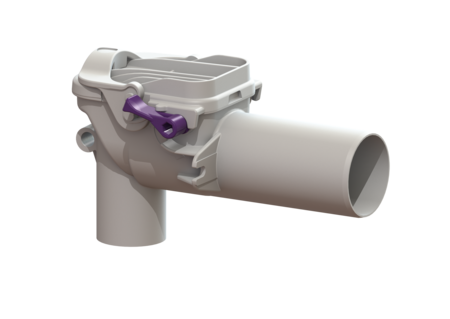

Backwater valve Staufix
Siphon, DN 50, Sink, Type 5
KESSEL Backwater valve Staufix, wastewater without sewage, nominal size (DN) 50, installation as sink siphon, 2 mechanical backwater flaps
- Ideal for modernisation: can also be installed in existing pipes later
- Simple, toolless maintenance and cleaning
- Corrosion-free
| Item no. | 73051 |
|---|---|
| GTIN | 4026092027400 |
| Price group | 10 |
Backwater valve Staufix Siphon, DN 50, Sink, Type 5
The backwater valve for wastewater without sewage is equipped with two mechanical flaps which close automatically in the event of backwater. One flap serves at the same time as an emergency closure to be closed by hand. Variant Emergency closure: yes Mechanical backwater flaps: 2 General characteristics Colour: white Standard: EN 13564 Nominal size (DN): 50 Type of wastewater: without sewage Installation situation: installation as sink siphon Delivery state: installation-ready Backwater protection: Type 5 Dimensions Net weight: 0,25 kg Gross weight: 0,29 kg Length: 183 mm Width: 80 mm Height: 110 mm Packaging dimension: length: 200 mm Packaging dimension: width: 100 mm Packaging dimension: height: 100 mm Coverage features Cover locking: One-handed closure
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| CAD Data | |
|---|---|
| Test Reports and Certificates | |
| Declaration of Performance |
- Nominal size (DN) (nennweite): 50
- CE marking (ce_kennzeichnung):
yes
- Type of wastewater (abwasserart_de):
without sewage
- Backwater protection (rueckstauschutz): Type 5
- Installation situation (einbausituation): installation as sink siphon
