Pipe flap valve

DN 1000

PDF product data sheet

KESSEL Pipe flap valve, nominal size (DN) 1000, wastewater without sewage, outside diameter (OD) 1000 mm, exposed drainage pipe, volume 1092 dm³

  • For universal use in salt and fresh water environments
  • Low weight for simple installation with high mechanical strength
  • High tightness: seals airtight even with low counter-pressure
Item no. 791000
GTIN 4026092054987
Price group 10

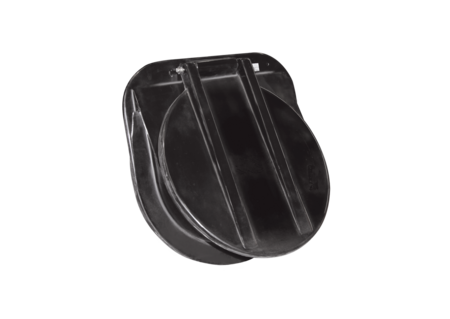

    Pipe flap valve DN 1000
    The pipe flap valve serves as an end piece and has a mechanical flap which closes automatically. Variant Mechanical backwater flaps: 1 General characteristics Colour: black Material: Polymer Nominal size (DN): 1000 Outer diameter (OD): 1000 mm Type of wastewater: without sewage Installation situation: exposed drainage pipe Delivery state: installation-ready Dimensions Net weight: 80 kg Gross weight: 80 kg Length: 495 mm Width: 1264 mm Height: 1330 mm Packaging dimension: length: 1400 mm Packaging dimension: width: 1300 mm Packaging dimension: height: 600 mm
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    • Material (material): Polymer
    • Installation situation (einbausituation): exposed drainage pipe
    • Type of wastewater (abwasserart_de): without sewage
    • Nominal size (DN) (nennweite): 1.000
    • Length (laenge): 495  mm
    • Width (breite): 1.264  mm
    • Mechanical backwater flaps (mechanische_rueckstauklappen): 1
