Pipe flap valve

DN 800

PDF product data sheet

KESSEL Pipe flap valve, nominal size (DN) 800, wastewater without sewage, outside diameter (OD) 800 mm, exposed drainage pipe, volume 682,5 dm³

  • For universal use in salt and fresh water environments
  • Low weight for simple installation with high mechanical strength
  • High tightness: seals airtight even with low counter-pressure
Item no. 79800
GTIN 4026092054994
Price group 10

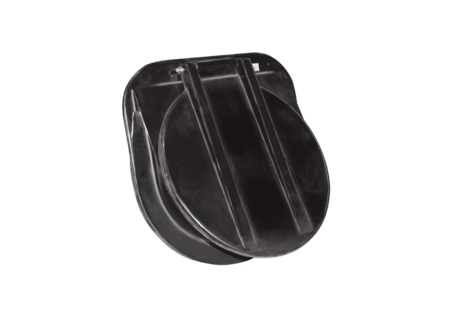

    Pipe flap valve DN 800
    The pipe flap valve serves as an end piece and has a mechanical flap which closes automatically. Variant Mechanical backwater flaps: 1 General characteristics Colour: black Material: Polymer Nominal size (DN): 800 Outer diameter (OD): 800 mm Type of wastewater: without sewage Installation situation: exposed drainage pipe Delivery state: installation-ready Dimensions Net weight: 55 kg Gross weight: 55 kg Length: 523 mm Width: 1035 mm Height: 1125 mm Packaging dimension: length: 1300 mm Packaging dimension: width: 1050 mm Packaging dimension: height: 500 mm
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    • Material (material): Polymer
    • Installation situation (einbausituation): exposed drainage pipe
    • Type of wastewater (abwasserart_de): without sewage
    • Nominal size (DN) (nennweite): 800
    • Length (laenge): 523  mm
    • Width (breite): 1.035  mm
    • Mechanical backwater flaps (mechanische_rueckstauklappen): 1
