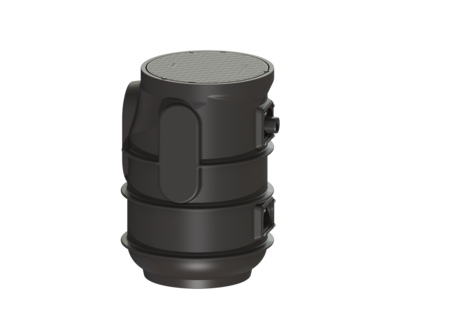

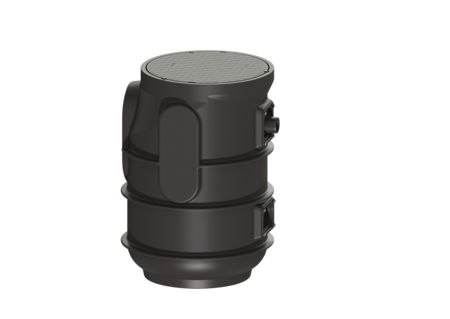

Pumping station Aquapump Small
Tronic, Basic, STF 1300
KESSEL Pumping station Aquapump Small, Tronic, wastewater for wastewater with and without sewage, Wet installation, with a submersible STF 1300 pump, level measurement mechanical
- Including backflow preventer for the pressure pipe
- Including openings for inlet, ventilation and cable duct
- Easy tool-free maintenance
| Item no. | 829711 |
|---|---|
| GTIN | 4026092084748 |
| Price group | 20 |
Pumping station Aquapump Small Tronic, Basic, STF 1300
The pumping station for wastewater with and without sewage is suitable for underground installations and is equipped with a backflow preventer for the pressure pipe. The PE tank is resistant to domestic wastewater and includes a pedestrian class polymer cover plate. The pump with multi-vane impeller ensures maximum operating reliability. Quick-release closures enable the integrated components to be removed easily. The components are pre-assembled for final assembly on site. Including openings for inlet, ventilation and cable duct. Variant Type of system: Single unit Installation: Wet installation Pump control: Control unit Backflow preventer: integrated General characteristics Colour: black Standard: EN 12050-2 as well as EN 12050-1 (without ATEX requirements) Type of wastewater: for wastewater with and without sewage Installation situation: underground installation System type: Tronic ATEX: no Dimensions Net weight: 22,61 kg Gross weight: 31,48 kg Length: 615 mm Width: 600 mm Height: 830 mm Packaging dimension: length: 1200 mm Packaging dimension: width: 800 mm Packaging dimension: height: 954 mm Tank/drain body Pressure pipe connection (DN): 50 Pressure pipe connection (OD): 63 mm Inlet max. scoring (DN): 100 mm Pumping volume: 60 l Coverage features Type of cover: Round cover plate Colour of cover: black Locking: lockable Load class: up to 300 kg Pumping device Pump: STF 1300 Number of pumps: 1 Weight, pump: 10 kg Connection type: Schuko (earthed contact) 2-pin Rated current: 6 A Protection class: I Insulation class: F Protection class (pump): IP 68 (3m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 21 m³/h Max. pumping height: 10 m Speed: 2650 U/min Power P1: 1,3 kW Power P2: 0,8 kW Operating mode: S3 - 50 % Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Free passage: 40 mm Length of mains cable for pump: 10 m Control Control unit: Basic Control unit function: With alarm message Motor protection switch: yes Level measurement instrument: Float switch Type of level measurement: mechanical Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 230 V Connection type: Schuko (earthed contact) 2-pin Length of mains cable for control unit: 1,45 m Potential-free contact: optional Battery buffering: yes Self-diagnosis system (SDS): yes Warning equipment version: acoustic and optical signal Type of fuse required (electrical protection): C 16 A
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Manuals | |
|---|---|
| Declaration of Performance | |
| Declaration of Conformity |
- Control unit (schaltgeraet): Basic
- TÜV test mark (pruefzeichen):
ID 1111241940
- Installation situation (einbausituation):
underground installation
- Type of wastewater (abwasserart_de): for wastewater with and without sewage
- Load class (belastungsklasse): up to 300 kg
- Pump (pumpe): STF 1300
- Impeller type (laufrad_typ): Multi-vane impeller
