Extension section
Floor slab, for waterproof concrete

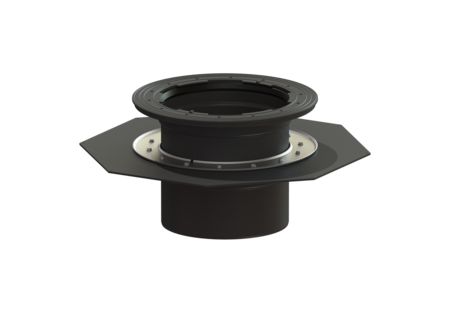

Extension section with flange for installation in waterproof concrete, including seal set consisting of mating flange made of stainless steel, with screws, elastomer damp course made of NK/SBR d: 700 mm, max. extension: 294 mm
| Item no. | 830075 |
|---|---|
| GTIN | 4026092076897 |
| Price group | 10 |
Extension section Floor slab, for waterproof concrete
Extension section with flange for installation in waterproof concrete, including seal set consisting of mating flange made of stainless steel, with screws, elastomer damp course made of NK/SBR d: 700 mm, max. extension: 294 mm Variant Seal: Lip seal General characteristics Colour: black Material: Polymer ATEX: no Dimensions Net weight: 8,05 kg Gross weight: 10,93 kg Diameter: 480 mm Packaging dimension: length: 710 mm Packaging dimension: width: 710 mm Packaging dimension: height: 380 mm
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Manuals | |
|---|---|
| CAD Data |
- Material (material):
Polymer
