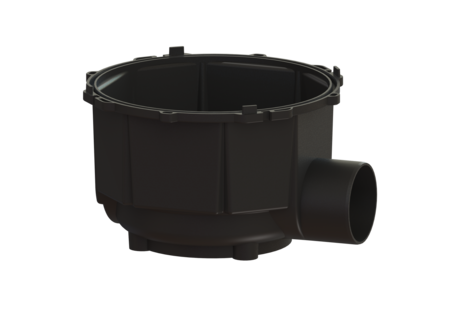

Drain body, yard/gutter drain

with outlet, DN 150, d: 450 mm

850010
PDF product data sheet

KESSEL Drain body, yard/gutter drain, outlet DN 150 mm, drainage by Point drain, socket lateral, drain body Polymer

  • Variable solution for the connection to the sewer
  • For easy underground installation
Item no. 850010
GTIN 4026092002933
Price group 10

    Drain body, yard/gutter drain with outlet, DN 150, d: 450 mm
    The drain body for yard and gutter drains is made of polymer and, in this version, does not include an odour trap. General characteristics Nominal size (DN): 150 Outer diameter (OD): 160 mm Dimensions Net weight: 3,5 kg Gross weight: 3,5 kg Length: 518 mm Width: 518 mm Height: 308 mm Packaging dimension: length: 450 mm Packaging dimension: width: 450 mm Packaging dimension: height: 308 mm Tank/drain body Number of outlets: 1 Outlet nominal size (DN): 150 mm Inlet nominal size (DN): 150 mm Material of drain body: Polymer Socket version: lateral
      Title Item no.
    850102 Adapter d: 450 mm, with seal 850102 Show
    850103 Adapter d: 358 mm, with seal 850103 Show
    850112 Seal d: 368 mm 850112 Show
    850113 Seal d: 458 mm 850113 Show
    850120 Upper section height-adjustable, cl. A/B 850120 Show
    850121 Upper section height-adjustable, cl. D 850121 Show
    850131 Cover plate Grey iron, Class B 850131 Show
    850132 Cover plate Polymer, Load class A 850132 Show
    850134 Slotted cover round, d: 362 mm, Polymer 850134 Show
    850135 Slotted cover round, d: 362 mm, Grey iron 850135 Show
    850136 Cover plate made of grey cast iron (GG), Class D 850136 Show
    850137 Slotted cover round, d: 395 mm, Grey iron 850137 Show
      Title Item no.
      Title Item no.
    500100 Hole saw for DN 100/125/150 500100 Show
    500101 Hole saw for DN 50/70/100 500101 Show
    83021 Pressure sealing flange f. upper sect. LW400 in waterrpr. conc. 83021 Show
    83022 Membrane for System 400, Waterproof concrete 83022 Show
    850101 Extension section System 400, Polymer 850101 Show
    850111 Connection wed Polymer, 4 each 850111 Show
    850114 Seal for pipe penetration, DN 50 850114 Show
    850115 Sludge bucket System 400, Polymer 850115 Show
    850116 Seal for pipe penetration, DN 70 850116 Show
    850117 Seal for pipe penetration, DN 100 850117 Show
    850118 Seal for pipe penetration, DN 125 850118 Show
    850119 Seal for pipe penetration, DN 150 850119 Show
    850142 Odour trap for yard drains, DN 150 850142 Show
    850143 Lifting tool for System 400 odour trap 850143 Show
      Title Item no.
    850142 Odour trap for yard drains, DN 150 850142 Show
    • Nominal size (DN) (nennweite): 150
    • Material of drain body (material_grundkoerper): Polymer
    • Socket version (stutzen_ausfuehrung): lateral
    • Outlet nominal size (DN) (auslauf_nennweite_dn): 150  mm
