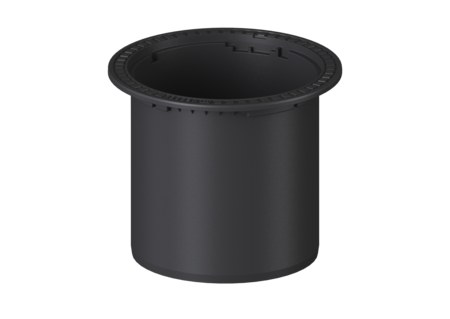

Upper Section LW 600
Polymer, height-adjustable 65 - 579 mm
KESSEL Upper Section LW 600, volume 406,09 dm³, adjustment range 65 - 579
| Item no. | 860152 |
|---|---|
| GTIN | 4026092102480 |
| Price group | 60 |
Upper Section LW 600 Polymer, height-adjustable 65 - 579 mm
Upper section with clamping ring suitable for chamber systems LW 1000/800/600 for covers resistant to surface water, class A/B or D, with Lock & Lift, continuously height-adjustable by 514 mm (Comfort and engineering chamber system) or 400 mm (standard chamber system). If installed in roads, parking areas and comparable hard-surfaced traffic areas for trucks (Class D), the upper section must be underlaid on site with a reinforced supporting slab made of concrete. A standard formwork and reinforcement drawing can be provided. Access steps (art. no. 860109) must be installed if the allowable difference between the top of the chamber cover and the first step is exceeded. Minimum insertion depth: 80 mm (Comfort and engineering chamber system) or 94 mm (standard chamber system and cisterns). Dimensions Net weight: 15,3 kg Gross weight: 15,3 kg Diameter: 785 mm Adjustment range: 65 - 579 Height: 659 mm Packaging dimension: length: 785 mm Packaging dimension: width: 785 mm Packaging dimension: height: 659 mm Coverage features Cover material: PP Colour of cover: black
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| CAD Data |
|---|
- Cover material (abdeckung_material):
PP
- (abdeckungsart):
- (belastungsklasse):
- Height (hoehe): 659 mm
