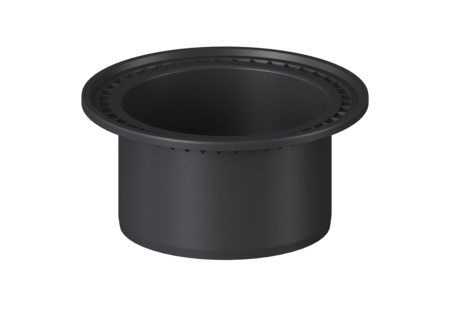

Upper Section LW 600
Begu, height-adjustable 79 - 329 mm
KESSEL Upper Section LW 600, volume 295,5 dm³, adjustment range 79 - 329
| Item no. | 860155 |
|---|---|
| GTIN | 4026092102510 |
| Price group | 60 |
Upper Section LW 600 Begu, height-adjustable 79 - 329 mm
Upper section with clamping ring suitable for chamber system LW 1000/800/600 for class A/B or D covers made of cast concrete, continuously height-adjustable by 250 mm (Komfort and engineering chamber system) or 236 mm (standard chamber system). If installed in roads, parking areas and comparable hard-surfaced traffic areas for trucks (Class D), a reinforced supporting slab made of concrete must be laid under the upper section on site. A standard formwork and reinforcement drawing can be provided. Access steps must be installed if the allowable difference between the top of the chamber cover and the first step is exceeded (art. no. 860109). Minimum insertion depth: 80 mm (Komfort and engineering chamber system) or 94 mm (Standard chamber system and cisterns). Dimensions Net weight: 12,86 kg Gross weight: 12,86 kg Diameter: 850 mm Adjustment range: 79 - 329 Height: 409 mm Packaging dimension: length: 850 mm Packaging dimension: width: 850 mm Packaging dimension: height: 409 mm Coverage features Cover material: PP Colour of cover: black
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| CAD Data |
|---|
- Cover material (abdeckung_material):
PP
- (abdeckungsart):
- (belastungsklasse):
- Height (hoehe): 409 mm
