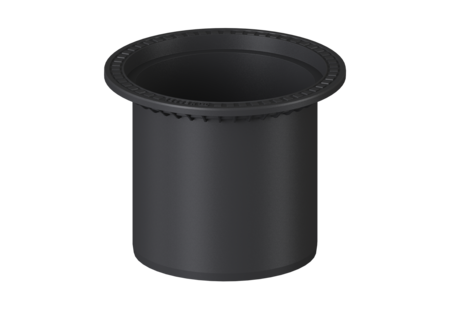

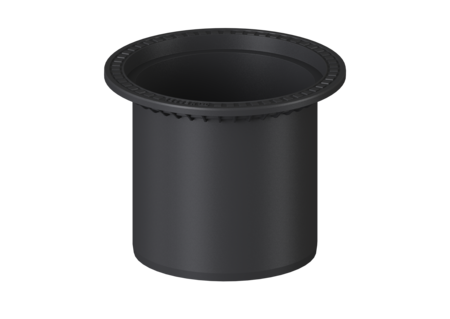

Upper Section LW 600
Polymer, height-adjustable 79 - 579 mm
KESSEL Upper Section LW 600, volume 448,53 dm³, adjustment range 79 - 579
| Item no. | 860156 |
|---|---|
| GTIN | 4026092102527 |
| Price group | 60 |
Upper Section LW 600 Polymer, height-adjustable 79 - 579 mm
Upper section with clamping ring suitable for chamber system LW 1000/800/600 for class A/B or D covers, continuously height-adjustable by 500 mm (Komfort and engineering chamber system) or 486 mm (standard chamber system). If installed in roads, parking areas and comparable hard-surfaced traffic areas for trucks (Class D), a reinforced supporting slab made of concrete must be laid under the upper section on site. A standard formwork and reinforcement drawing can be provided. Access steps must be installed if the allowable difference between the top of the chamber cover and the first step is exceeded (art. no. 860109). Minimum insertion depth: 80 mm (Komfort and engineering chamber system) or 94 mm (Standard chamber system and cisterns). Insertion depth: 50 mm Dimensions Net weight: 16,34 kg Gross weight: 16,34 kg Diameter: 825 mm Adjustment range: 79 - 579 Height: 659 mm Packaging dimension: length: 825 mm Packaging dimension: width: 825 mm Packaging dimension: height: 659 mm Coverage features Cover material: PP Colour of cover: black
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| CAD Data |
|---|
- Cover material (abdeckung_material):
PP
- (abdeckungsart):
- (belastungsklasse):
- Height (hoehe): 659 mm
