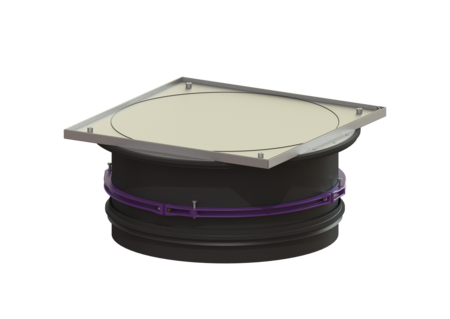

Upper section with cover plate

LW 800, Class K 3, tileable

8740175
8740175
PDF product data sheet

KESSEL Upper section with cover plate, load class K 3, volume 422,9 dm³, surface tileable, adjustment range 65 - 314

Item no. 8740175
GTIN 4026092070413
Price group 60

    Upper section with cover plate LW 800, Class K 3, tileable
    Upper section for continuous height and level compensation for chamber module LW 1000, consisting of a cover plate as well as seals and connection wedges General characteristics Colour: black Material: Polymer Dimensions Net weight: 68,5 kg Gross weight: 85 kg Clear width (LW): 800 mm Adjustment range: 65 - 314 Packaging dimension: length: 1200 mm Packaging dimension: width: 1200 mm Packaging dimension: height: 2200 mm Coverage features Type: surface water resistant Surface: tileable Locking: screwed Load class: K 3 (EN 1253-1)
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    680375 Seal for chamber module LW 1000 680375 Show
    680568 Clamping ring for upper sections d: 800 mm 680568 Show
    680593 Screw set 4 countersunk screws, M10x35, A4 680593 Show
    680653 Seal for cover plate, d: 840 mm 680653 Show
    680654 Screw set Set of 24, for upper section, K80x22, A2 680654 Show
    680655 Seal for upper section, d: 870 mm 680655 Show
    680656 Cover plate Frame, K 3, 24 screws, seal 680656 Show
    680657 Cover plate K 3, incl. 4 screws, seal 680657 Show
    • Material (material): Polymer
    • (abdeckungsart):
    • Load class (belastungsklasse): K 3 (EN 1253-1)
    • Surface (oberflaeche): tileable
