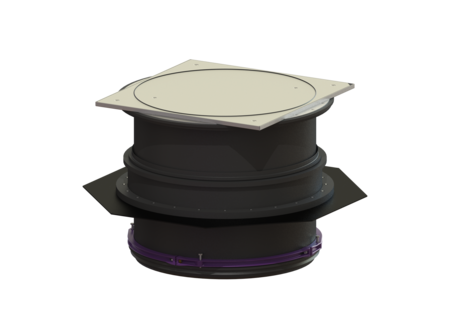

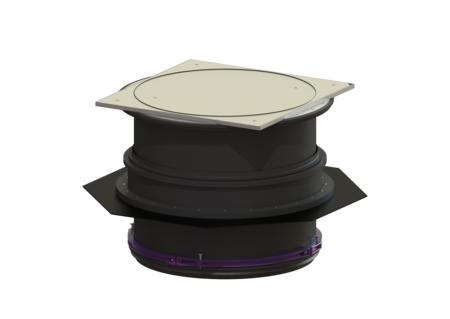

Upper section with cover plate
LW 800, Class A/L15 w. waterproof flange
KESSEL Upper section with cover plate, load class A 15 / L 15, volume 891,12 dm³, floor slab installation, surface Stainless steel, ribbed, adjustment range 267 - 516
| Item no. | 8740178 |
|---|---|
| GTIN | 4026092070444 |
| Price group | 60 |
Upper section with cover plate LW 800, Class A/L15 w. waterproof flange
Upper section for continuous height and level compensation for chamber module LW 1000, consisting of a cover plate as well as seals and connection wedges Variant Waterproof flange: yes General characteristics Colour: black Material: Polymer Installation situation: floor slab installation Dimensions Net weight: 94,5 kg Gross weight: 111 kg Clear width (LW): 800 mm Adjustment range: 267 - 516 Packaging dimension: length: 2400 mm Packaging dimension: width: 1200 mm Packaging dimension: height: 2200 mm Coverage features Type: surface water resistant Type of cover: Rectangular cover plate Width of cover: 860 mm Length of cover: 860 mm Surface: Stainless steel, ribbed Locking: screwed Load class: A 15 (EN 124) / L 15 (EN 1253-1)
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Seal for chamber module LW 1000 | 680375 | Show |
 | WU extension section for chamber module | 680378 | Show |
 | Clamping ring for upper sections d: 800 mm | 680568 | Show |
 | Seal for cover plate, d: 840 mm | 680653 | Show |
 | Screw set Set of 24, for upper section, K80x22, A2 | 680654 | Show |
 | Seal for upper section, d: 870 mm | 680655 | Show |
 | Cover plate L 15, incl. 30 screws, Seal | 680658 | Show |
 | Screw set 2 countersunk screws, M8x12, A4 | 680661 | Show |
 | Cover plate L 15, incl. 6 screws, Seal | 680662 | Show |
 | Screw set 4 countersunk screws, M10x20, A4 | 680663 | Show |
| Manuals | |
|---|---|
| CAD Data |
- Material (material):
Polymer
- Installation situation (einbausituation):
floor slab installation
- Type of cover (abdeckungsart): Rectangular cover plate
- Load class (belastungsklasse): A 15 (EN 124) / L 15 (EN 1253-1)
- Surface (oberflaeche): Stainless steel, ribbed
