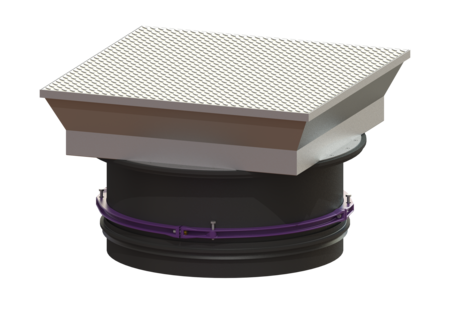

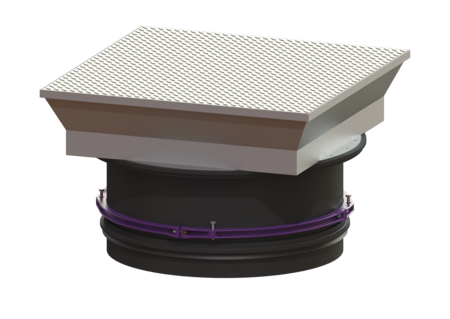

Upper section with cover plate
LW 800, Class B
KESSEL Upper section with cover plate, load class B 125, volume 649,59 dm³, surface Stainless steel, adjustment range 274 - 523
| Item no. | 8740179 |
|---|---|
| GTIN | 4026092070451 |
| Price group | 60 |
Upper section with cover plate LW 800, Class B
Upper section for continuous height and level compensation for chamber module LW 1000, consisting of a flush-to-ground cover for setting in concrete, with inner joints, all-round frost- and weather-proof seal, gas spring as an opening aid incl. self-effective arresting device. Suitable for taper with 800 mm access. General characteristics Colour: black Material: Polymer Dimensions Net weight: 132,37 kg Gross weight: 150,1 kg Clear width (LW): 800 mm Adjustment range: 274 - 523 Packaging dimension: length: 1200 mm Packaging dimension: width: 1200 mm Packaging dimension: height: 2200 mm Coverage features Type: surface water resistant Surface: Stainless steel Locking: screwed Load class: B 125 (EN 124)
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Manuals | |
|---|---|
| CAD Data |
- Material (material):
Polymer
- (abdeckungsart):
- Load class (belastungsklasse): B 125 (EN 124)
- Surface (oberflaeche): Stainless steel
