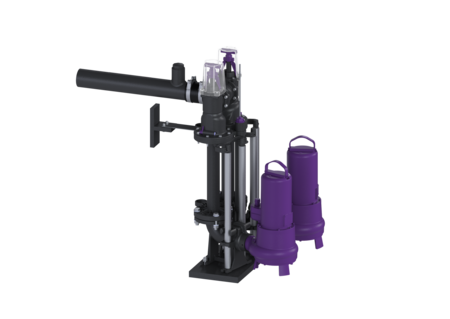

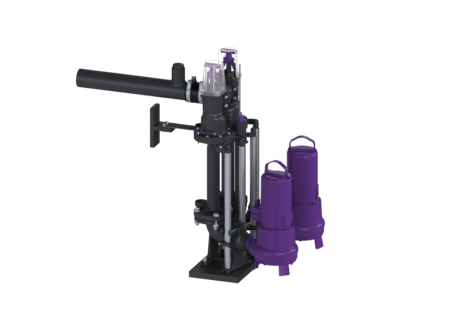

Pump system Aquapump Retrofit

Duo, GTK 3700, Level sensor

8744034
8744034
PDF product data sheet

KESSEL Pump system Aquapump Retrofit Duo, wastewater for wastewater with or without sewage (in installation situations without ATEX requirements), installation in on-site collecting tank, with 2 submersible GTK 3700 pumps, 400 V, pressure pipe connection DN 90, Backflow preventer integrated

    Item no. 8744034
    GTIN 4026092103579
    Price group 60

      Pump system Aquapump Retrofit Duo, GTK 3700, Level sensor
      Twin pump system, for installation in an on-site chamber module. Required minimum diameter of the on-site chamber: 1000 mm Variant Type of system: duo pump Shut-off valve: yes Installation: Wet installation Pump control: Control unit Backflow preventer: integrated Pressure pipe connection: vertical (special version, on request), horizontal (standard version) General characteristics Standard: EN 12050-2 as well as EN 12050-1 (without ATEX requirements) Type of wastewater: for wastewater with or without sewage (in installation situations without ATEX requirements) Installation situation: installation in on-site collecting tank System type: Duo ATEX: no Dimensions Net weight: 155,6 kg Gross weight: 155,6 kg Packaging dimension: length: 1090 mm Packaging dimension: width: 615 mm Packaging dimension: height: 1062 mm Tank/drain body Pressure pipe connection (DN): 90 Pressure pipe connection (OD): 80 mm Pumping device Pump: GTK 3700 Number of pumps: 2 Connection type: Direct connection Operating voltage: 400 Mains frequency: 50 Hz Rated current: 6,5 A Length of mains cable for pump: 10 m Protection class: I Protection class (pump): IP 68 (3m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 82 m³/h Max. pumping height: 23,5 m Speed: 2900 U/min Power P1: 3,7 kW Power P2: 3,1 kW Operating mode: S1 Type of pump connection cable: H07RN-F 7G 1.5 mm² Impeller type: Single-vane impeller Type of fuse required (electrical protection): 3 x C 32 A Control Control unit: Comfort Alarm sensor: Level sensor Level measurement instrument: Level sensor Type of level measurement: hydrostatic Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 400 V Connection type: Direct connection Potential-free contact: optional GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Type of fuse required (electrical protection): 3 x C 32 A Rated current: 6,5 A
        Title Item no.
        Title Item no.
        Title Item no.
        Title Item no.
      • Control unit (schaltgeraet): Comfort
      • Alarm sensor (alarmgeber): Level sensor
      • Pump (pumpe): GTK 3700
      • Type of wastewater (abwasserart_de): for wastewater with or without sewage (in installation situations without ATEX requirements)
      • Impeller type (laufrad_typ): Single-vane impeller
