Pump installation kit Retrofit S

Duo, GTF 1000-S1, 230V

8744051
8744051
PDF product data sheet

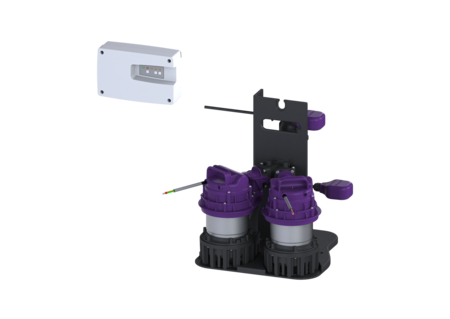

KESSEL Pump installation kit Retrofit S Duo, wastewater without sewage, installation in on-site collecting tank, with 2 submersible GTF 1000 pumps, alarm generator with Float switch, Backflow preventer integrated

    • Quick installation thanks to pre-assembled components
    • Flexible and space-saving installation
    • Suitable for all common pressure pipes
    Item no. 8744051
    GTIN 4026092109489
    Price group 60

      Pump installation kit Retrofit S Duo, GTF 1000-S1, 230V

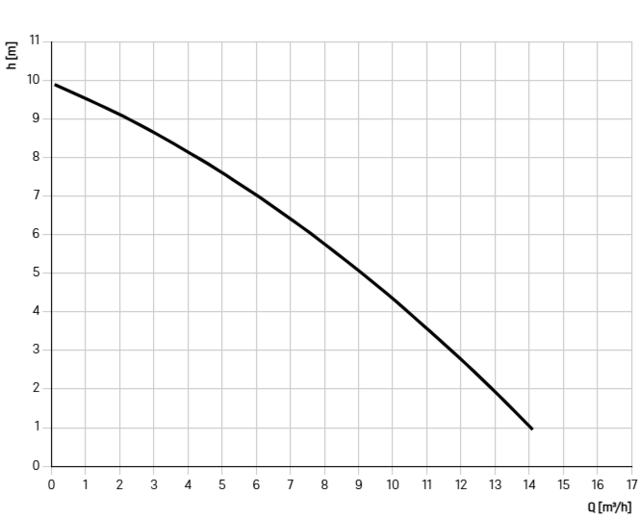

      The pump system for installation in existing collection tanks for wastewater without sewage is equipped with two submersible pumps suitable for continuous operation, and two backflow preventers. The compact polymer (PU) bracket is used for the variable mounting of components in various application scenarios and to fasten the pumping system, even in confined spaces. All common types of pressure pipe can be connected using the 90° quick-release closure. Quick-release closures enable the integrated components to be removed easily. The components are pre-assembled for final assembly on site. Control is carried out by means of a level float via user-friendly 230V Connect Duo control unit that can optionally be integrated into the building management system through a potential-free contact. Variant Type of system: duo pump Installation: Wet installation Pump control: Control unit Backflow preventer: integrated General characteristics Standard: EN 12050-2 Type of wastewater: without sewage Installation situation: installation in on-site collecting tank Delivery state: Modular set for assembly on site System type: Duo ATEX: no Dimensions Net weight: 26 kg Gross weight: 30,59 kg Length: 403 mm Width: 380 mm Height: 448 mm Packaging dimension: length: 785 mm Packaging dimension: width: 385 mm Packaging dimension: height: 465 mm Tank/drain body Pressure pipe connection (DN): 40 Pressure pipe connection (OD): 50 mm Pumping device Pump: GTF 1000 Number of pumps: 2 Weight, pump: 11 kg Connection type: Schuko (earthed contact) 2-pin Rated current: 5,6 A Protection class: I Insulation class: F Cos phi - power factor: 0,97 Protection class (pump): IP 68 (3m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping height: 10 m Speed: 2700 U/min Power P1: 1,3 kW Power P2: 0,75 kW Operating mode: S1 Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Free passage: 10 mm Type of fuse required (electrical protection): C 16 A Length of mains cable for pump: 10 m Control Control unit: Connect Duo Control unit function: With alarm message Motor protection switch: yes Alarm sensor: Float switch Level measurement instrument: Float switch Type of level measurement: mechanical Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 230 V Connection type: Schuko (earthed contact) 2-pin Length of mains cable for control unit: 1,4 m Potential-free contact: optional Battery buffering: yes Self-diagnosis system (SDS): yes Warning equipment version: acoustic and optical signal Type of fuse required (electrical protection): C 16 A
        Title Item no.
        Title Item no.
        Title Item no.
        Title Item no.
      680018 One-handed closure for backflow preventer 680018 Show
      680067 Seal for pressure pipe connection 680067 Show
      680361 Intake cage for faecal-free wastewater, 10 mm 680361 Show
      680364 Spiral housing for passage 10 mm 680364 Show
      680475 Pump connection with seal and flap 680475 Show
      680576 Union nut R1,5" for pump coupling 680576 Show
      680578 ON/OFF float switch, 10 m With a bending safeguard and nut 680578 Show
      680579 ALARM float switch, 10 m With a bending safeguard and nut 680579 Show
      680580 Pressure pipe connection 90° With a DN40 quick-release coupling 680580 Show
      680583 Replacement pump GTF 1000-S1 Tronic, 10 m cable, 230V 680583 Show
      680818 Control unit Connect Duo, 230 V 680818 Show
      		Retrofit S Screw set Incl. Washers and nuts 681048 Show
      • Type of wastewater (abwasserart_de): without sewage
      • Alarm sensor (alarmgeber): Float switch
      • Pump (pumpe): GTF 1000
      • Impeller type (laufrad_typ): Multi-vane impeller
      • Control unit (schaltgeraet): Connect Duo
