Oil suction disposal connection

DN 150

917803
PDF product data sheet

KESSEL Oil suction disposal connection DN 150, volume 101,18 dm³

Item no. 917803
GTIN 4026092025291
Price group 60

    Oil suction disposal connection DN 150

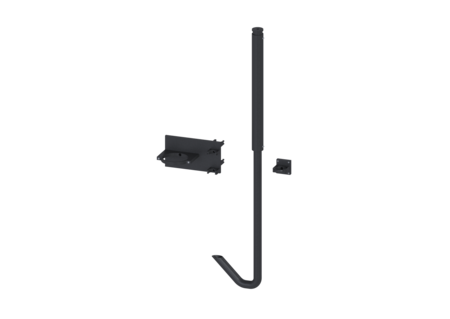

    Oil suction disposal connection for extracting the oil volume on reaching the maximum storage quantity, for connecting to the disposal vehicle, consisting of suction pipe elbow d: 50 mm, 0.5 m suction hose d: 50 mm for individual adjustment to the upper section, made of NBR with steel wire spirals and Cu litz wires, with connected Storz 52 C suction hose coupling and identification sign as well as installation kit for separator with inlet dimension DN 150 General characteristics Nominal size (DN): 150 Dimensions Net weight: 1,5 kg Gross weight: 1,5 kg Packaging dimension: length: 680 mm Packaging dimension: width: 620 mm Packaging dimension: height: 240 mm
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    CAD Data
    • Nominal size (DN) (nennweite): 150
