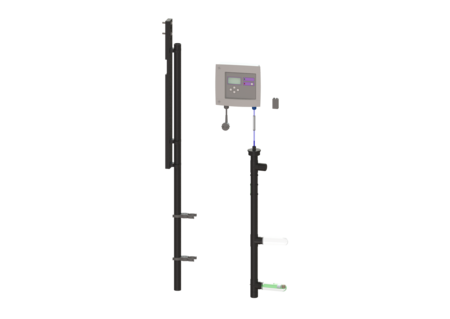

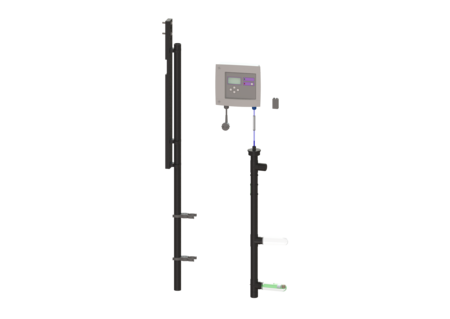

Layer thickness measuring device
SonicControl, type O
Type O SonicControl layer thickness measuring device for light liquid separators, with ultrasonic sensor for monitoring and reporting of the oil layer thickness with centimetre accuracy. With mains connection, battery backup and optional connection possibility for a remote signal generator. Incl. fixing set for simple on-site assembly and maintenance. Cable (for sensor) can be extended on site up to 60 m. Control unit with optical and acoustic alarm, electronic logbook designed for 12 months, logbook readout option via USB interface.
| Item no. | 917828 |
|---|---|
| GTIN | 4026092047330 |
| Price group | 60 |
Layer thickness measuring device SonicControl, type O
Type O SonicControl layer thickness measuring device for light liquid separators, with ultrasonic sensor for monitoring and reporting of the oil layer thickness with centimetre accuracy. With mains connection, battery backup and optional connection possibility for a remote signal generator. Incl. fixing set for simple on-site assembly and maintenance. Cable (for sensor) can be extended on site up to 60 m. Control unit with optical and acoustic alarm, electronic logbook designed for 12 months, logbook readout option via USB interface. General characteristics Approval: BVS 11 ATEX E 040 X Cable length: 30 m ATEX: yes Dimensions Net weight: 1,9 kg Gross weight: 3,94 kg Packaging dimension: length: 1200 mm Packaging dimension: width: 380 mm Packaging dimension: height: 90 mm Pumping device Connection type: Schuko (earthed contact) 2-pin Control Control unit: yes Standby power: 3,4 W Protection class control unit: IP 54 Connection type: Schuko (earthed contact) 2-pin Length of mains cable for control unit: 1,45 m Potential-free contact: yes GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
- Control unit (schaltgeraet):
yes
- ATEX (atex):
yes
