Grease separat. EasyClean Modular
free, NS 2, round, Direct disposal
KESSEL Grease separat. EasyClean Modular, disposal Direct, nominal size 2, free-standing installation, type of disposal manual, tightness odour-tight, locking Quick-release closure, two-piece chamber, Separator capacity 400 l
- Ideal where access is tight
- can be divided into 3 parts for insertion, for an insertion opening of max. 66 cm
- Direct disposal with the tank closed

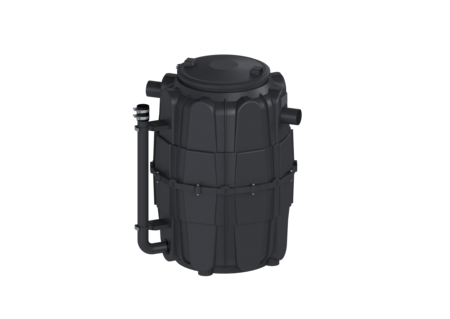

| Item no. | 93002.00/D1-R |
|---|---|
| Price group | 60 |
Grease separat. EasyClean Modular free, NS 2, round, Direct disposal

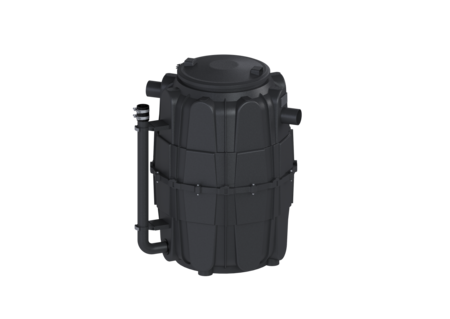

The separator for greasy wastewater is suitable for free-standing set-up in frost-protected rooms and comes without metallic components in the tank. Thanks to the modular design, the separator can be inserted even where access is extremely tight. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap. A service access cover with odour-tight cover and quick-release closures makes easy access possible for cleaning and maintenance work. A direct disposal pipe socket is available for odour-reduced manual disposal. 20 year polyethylene warranty. Variant Chamber system: two-piece chamber Disposal variant: Direct Nominal size (NS): 2 Disposal system: Disposal connection Type of disposal: manual General characteristics Material: PE Standard: EN 1825: 2004 Installation situation: free-standing installation Delivery state: Installation-ready (connection parts must be connected on site) Scope of delivery: Storz-B coupling R 2 1/2" for disposal vehicle connection Dimensions Net weight: 57 kg Gross weight: 68 kg Set-up area, height: 1395 mm Required access area, length: 1100 mm Required access area, width: 1020 mm Required access area, height: 690 mm Packaging dimension: length: 1300 mm Packaging dimension: width: 1000 mm Packaging dimension: height: 1500 mm Tank/drain body Outlet nominal size (DN): 100 mm Inlet nominal size (DN): 100 mm Coverage features Type of cover: Cover Locking: Quick-release closure Tightness: odour-tight Wastewater contents Separator contents: 400 l Contents of sludge trap: 200 l
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Manuals | |
|---|---|
| Declaration of Performance |
- Material (material):
PE
- Disposal system (entsorgungseinrichtung):
Disposal connection
- Installation situation (einbausituation):
free-standing installation
- Nominal size (NS) (nenngroesse): 2
