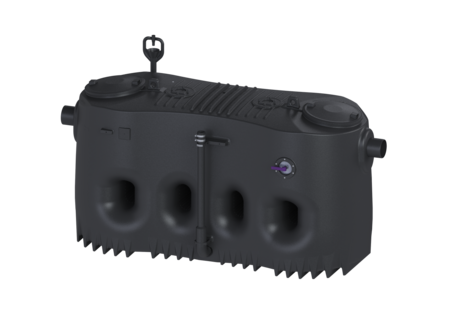

Grease separator EasyClean free
NS 20, Direct, left
KESSEL Grease separator EasyClean free, disposal, nominal size 20,00, Separator capacity 1730 l, free-standing installation, tightness odour-tight, locking Quick-release closure, flow direction left, no, no, no
- Direction of flow can be changed thanks to self-sealing interchangeable hubs (NS 2- NS 10)
- Low-maintenance operation
- Odour-reduced disposal with the tank closed
| Item no. | 93020-01-D-L |
|---|---|
| GTIN | 4026092105214 |
| Price group | 60 |
Grease separator EasyClean free NS 20, Direct, left
The separator for greasy wastewater is suitable for free-standing set-up in frost-protected rooms and comes without metallic components in the tank. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap and has a tapered base for fast and clean disposal. Two odour-tight covers with quick-release closures make easy access possible for cleaning and maintenance work. A direct disposal pipe socket is available for odour-reduced manual disposal. After disposal, a maximum of 3 litres residual sludge volume is left in the tank. 20 year polyethylene warranty. Variant Direction of flow: left Shredder-Mix-System: no Sludge bucket: no Nominal size (NS): 20,00 SonicControl: no Refill inlet in accordance with DIN 1988: no Type of disposal: manual General characteristics Material: PE Installation situation: free-standing installation Delivery state: Installation-ready (connection parts must be connected on site) Scope of delivery: Storz-B coupling R 2 1/2" for disposal vehicle connection Dimensions Net weight: 360 kg Gross weight: 435 kg Set-up area, length: 3530 mm Set-up area, width: 1490 mm Set-up area, height: 1950 mm Packaging dimension: length: 3530 mm Packaging dimension: width: 1490 mm Packaging dimension: height: 2085 mm Tank/drain body Nominal pressure (PN): 10 Pressure pipe connection (DN): 65 Pressure pipe connection (OD): 75 mm Distance pipe bottom outlet to tank bottom: 1130 mm Distance pipe bottom inlet to tank bottom: 1200 mm Outlet nominal size (OD): 200 mm Outlet nominal size (DN): 200 mm Inlet nominal size (OD): 200 mm Inlet nominal size (DN): 200 mm Connection inlet/outlet sockets: PE-HD pipes in accordance with DIN 19537, HT pipes in accordance with DIN 19560, PP or AS Servicing opening: 420 mm Coverage features Type of cover: Cover Cover material: Polymer Colour of cover: violet Locking: Quick-release closure Tightness: odour-tight Wastewater contents Separator contents: 1730 l Total volume: 3730 l Storage quantity of grease: 800 l Control Control unit: no
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Sampling system DN 200, horizontal | 915883 | Show |
 | Layer thickness measuring device SonicControl, for grease separators | 917821 | Show |
 | Cable extension 10 m, for SonicControl grease separator | 917871 | Show |
| Cable extension 20 m, for SonicControl grease separator | 917872 | Show |
| Cable extension 30 m, for SonicControl grease separator | 917873 | Show |
| CAD Data | |
|---|---|
| Declaration of Performance |
- Material (material):
PE
- Cover material (abdeckung_material):
Polymer
- Installation situation (einbausituation):
free-standing installation
- Nominal size (NS) (nenngroesse): 20
- Inlet nominal size (DN) (zulauf_nennweite_dn): 200 mm
- Outlet nominal size (DN) (auslauf_nennweite_dn): 200 mm
