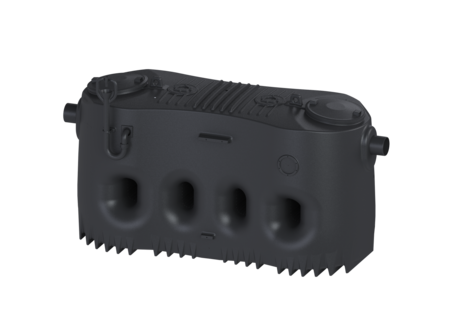

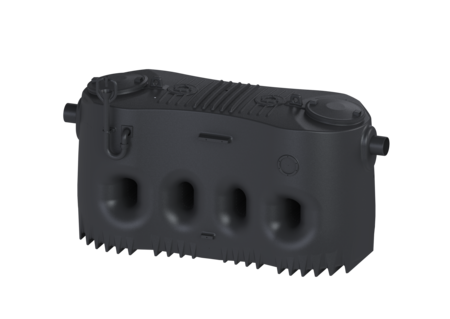

Grease separator EasyClean free

NS 20, Standard, right

93020-01-R
93020-01-R
PDF product data sheet

KESSEL Grease separator EasyClean free, nominal size 20,00, free-standing installation, type of disposal manual with suction hose, flow direction right, no, total volume 3730 l

  • Direction of flow can be changed thanks to self-sealing interchangeable hubs (NS 2- NS 10)
  • Can be retrofitted up to Auto Mix & Pump
  • Low-maintenance operation
Item no. 93020-01-R
GTIN 4026092105245
Price group 60

    Grease separator EasyClean free NS 20, Standard, right
    The separator for greasy wastewater is suitable for free-standing set-up in frost-protected rooms and comes without metallic components in the tank. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap and has a tapered base for fast and clean disposal. Two odour-tight covers with quick-release closures make easy access possible for cleaning and maintenance work. Manual disposal is carried out with the tank open. 20 year polyethylene warranty. Variant Direction of flow: right Disposal variant: Standard Shredder-Mix-System: no Nominal size (NS): 20,00 SonicControl: no Type of disposal: manual with suction hose General characteristics Installation situation: free-standing installation Delivery state: Installation-ready (connection parts must be connected on site) Dimensions Net weight: 355 kg Gross weight: 430 kg Set-up area, length: 3530 mm Set-up area, width: 1730 mm Set-up area, height: 1950 mm Required access area, length: 3530 mm Required access area, width: 1490 mm Required access area, height: 1950 mm Packaging dimension: length: 3530 mm Packaging dimension: width: 1490 mm Packaging dimension: height: 2085 mm Tank/drain body Distance pipe bottom outlet to tank bottom: 1130 mm Distance pipe bottom inlet to tank bottom: 1200 mm Outlet nominal size (OD): 200 mm Outlet nominal size (DN): 200 mm Inlet nominal size (OD): 200 mm Inlet nominal size (DN): 200 mm Coverage features Type of cover: Cover Cover material: Polymer Colour of cover: violet Tightness: odour-tight Wastewater contents Separator contents: 1730 l Max. grease layer thickness: 235 mm Total volume: 3730 l Contents of sludge trap: 2000 l Storage quantity of grease: 800 l
      Title Item no.
      Title Item no.
      Title Item no.
    915883 Sampling system DN 200, horizontal 915883 Show
    917821 Layer thickness measuring device SonicControl, for grease separators 917821 Show
    917871 Cable extension 10 m, for SonicControl grease separator 917871 Show
    917872 Cable extension 20 m, for SonicControl grease separator 917872 Show
    917873 Cable extension 30 m, for SonicControl grease separator 917873 Show
      Title Item no.
    680003 Seal DN 150 680003 Show
    680128 Seal DN 200 680128 Show
    680555 Flexible coupling with hose clamps, DN 75, L: 100 mm 680555 Show
    916901 Cover d: 625 mm 916901 Show
    917001 Clamp fastener for cover 625 mm 917001 Show
    917201 Seal for cover 625 mm 917201 Show
    CAD Data
    Declaration of Performance
    • Cover material (abdeckung_material): Polymer
    • Installation situation (einbausituation): free-standing installation
    • Nominal size (NS) (nenngroesse): 20
    • Set-up area, width (aufstellflaeche_breite): 1.730  mm
    • Set-up area, length (aufstellflaeche_laenge): 3.530  mm
    • Inlet nominal size (DN) (zulauf_nennweite_dn): 200  mm
    • Outlet nominal size (DN) (auslauf_nennweite_dn): 200  mm
