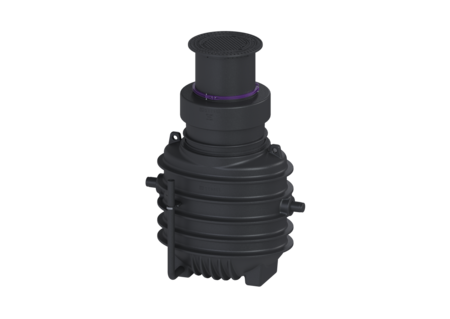

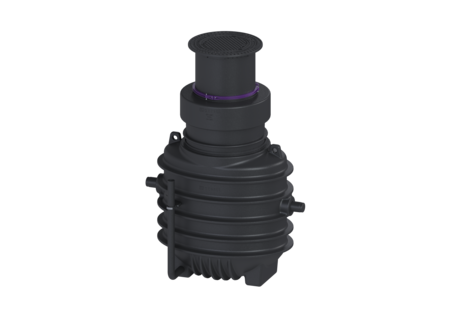

Grease separator EasyClean ground

NS 1, Direct, 1190-1740 mm, D, right

95010-170D-DR
95010-170D-DR

KESSEL Grease seperator EasyClean ground, disposal Direct, nominal size, load class D 400, underground installation, installation depth 1190 - 1740 mm, type of disposal manual, flow direction right

  • Low odour and clean disposal
  • Defined disposal point
  • Complete emptying of the separator
Item no. 95010-170D-DR
GTIN 4026092100868
Price group 60

    Grease separator EasyClean ground NS 1, Direct, 1190-1740 mm, D, right
    The separator for greasy wastewater is suitable for installation in the ground and comes without metallic structural components in the tank. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap, and has a rounded base for fast and clean disposal. Access for cleaning and maintenance work is possible via a service access cover. A direct disposal pipe socket is available for manual disposal. A load distribution slab must be installed on site for load class D. The reinforcement drawings are part of the EBA and are available from KESSEL. The tank is groundwater resistant up to ground level (GL). 20 year polyethylene warranty. Variant Note on installation depth: Ground installation frost-free depth 1700 mm Direction of flow: right Disposal variant: Direct Nominal size (NS): 1 Disposal system: Disposal pipe Type of disposal: manual Load-bearing capacity (DIN 19901): E4 General characteristics Material: PE Standard: EN 1825: 2004, DIN 4040-100 Installation situation: underground installation Delivery state: Installation-ready (connection parts must be connected on site) Dimensions Net weight: 245 kg Gross weight: 245 kg Diameter: 648 mm Installation depth: 1190 - 1740 mm Length: 1700 mm Width: 1090 mm Height: 1515 mm Packaging dimension: length: 1300 mm Packaging dimension: width: 2200 mm Packaging dimension: height: 1665 mm Tank/drain body Distance pipe bottom outlet to tank bottom: 800 mm Distance pipe bottom inlet to tank bottom: 870 mm Outlet nominal size (DN): 100 mm Inlet nominal size (OD): 110 mm Inlet nominal size (DN): 100 mm Connection inlet/outlet sockets: PE-HD pipes in accordance with DIN 19537, PVC-KG pipes in accordance with DIN 19534, PP or AS Clear width of entry (LW): 600 mm Coverage features Type of cover: Cover plate Cover material: Grey iron Colour of cover: black Locking: Lock & Lift Load class: D 400 (EN 124) Tightness: odour-tight and surface water resistant Wastewater contents Separator contents: 550 l Max. grease layer thickness: 42 mm Total volume: 650 l Contents of sludge trap: 100 l Storage quantity of grease: 40 l
      Title Item no.
      Title Item no.
      Title Item no.
    9151010D Sampling chamber LW 1000, DN 100, Class D 9151010D Show
    915402 Extension section System 400, H: 600 mm, can be shortened 915402 Show
    915880D Sampling chamber LW 400, DN 100/150, class D 915880D Show
    915881D Sampling chamber d: 450 mm, DN 100, Class D 915881D Show
    917413 Access panel for mounting on-wall 917413 Show
    917414 Access panel for in-wall installation 917414 Show
    917421 Connection set for underground separators 917421 Show
    917422D Disposal chamber LW 400, underground separators, D 917422D Show
    917821 Layer thickness measuring device SonicControl, for grease separators 917821 Show
    917823 SonicControl cable gland Underground separator installation set 917823 Show
    917871 Cable extension 10 m, for SonicControl grease separator 917871 Show
    917872 Cable extension 20 m, for SonicControl grease separator 917872 Show
    917873 Cable extension 30 m, for SonicControl grease separator 917873 Show
      Title Item no.
    680276 Clamping ring for upper sections d: 600 mm 680276 Show
    680278 Removal key for cover plates 680278 Show
    680323 Seal for cover plate, locked 680323 Show
    680324 Upper section d: 630 mm, surface water resistant 680324 Show
    681104 Cover plate LW 600 Lock&Lift, class D, separator 681104 Show
    860104 Seal d: 630 mm, from 01/2015 860104 Show
    917112 Removal tool for 'Goliath' chamber cover 917112 Show
    • Material (material): PE
    • Disposal system (entsorgungseinrichtung): Disposal pipe
    • Installation situation (einbausituation): underground installation
    • Nominal size (NS) (nenngroesse): 1
    • Load class (belastungsklasse): D 400 (EN 124)
    • Installation depth (einbautiefe): 1.190  mm
