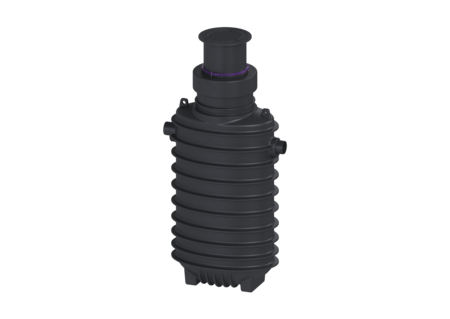

Grease seperator EasyClean ground

NS 12,5, Standard, 995-1170 mm,Class A/B

95125-170B
95125-170B
PDF product data sheet

KESSEL Grease seperator EasyClean ground, disposal Standard, nominal size 12,5, load class B 125, underground installation, installation depth 995 - 1170 mm, type of disposal manual with suction hose, locking Lock & Lift

  • Vertically adjustable upper section with odour-tight cover plates in various load classes
  • Resistant to groundwater
  • Low-maintenance operation
Item no. 95125-170B
GTIN 4026092100530
Price group 60

    Grease seperator EasyClean ground NS 12,5, Standard, 995-1170 mm,Class A/B
    The separator for greasy wastewater is suitable for installation in the ground and comes without metallic structural components in the tank. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap and has a rounded base for fast and clean disposal. Access for cleaning and maintenance work is possible via a service access cover. Manual disposal is carried out with the tank open. A load distribution slab must be installed on site for load class D. The reinforcement drawings are part of the EBA and are available from KESSEL. The tank is groundwater resistant up to ground level (GL). 20 year polyethylene warranty. Variant Note on installation depth: Ground installation frost-free depth 1700 mm Disposal variant: Standard Shredder-Mix-System: no Sludge bucket: no Nominal size (NS): 12,5 SonicControl: no Refill inlet in accordance with DIN 1988: no Type of disposal: manual with suction hose Load-bearing capacity (DIN 19901): E4 General characteristics Material: PE Standard: EN 1825: 2004, DIN 4040-100 Installation situation: underground installation Delivery state: Installation-ready (connection parts must be connected on site) Dimensions Net weight: 382 kg Gross weight: 444 kg Installation depth: 995 - 1170 mm Type of height adjustability: vertically adjustable upper section, can be tilted by 5 degrees Length: 1870 mm Width: 1090 mm Height: 2795 mm Packaging dimension: length: 2500 mm Packaging dimension: width: 2700 mm Packaging dimension: height: 1240 mm Tank/drain body Distance pipe bottom outlet to tank bottom: 2125 mm Distance pipe bottom inlet to tank bottom: 2195 mm Outlet nominal size (OD): 200 mm Outlet nominal size (DN): 200 mm Inlet nominal size (OD): 200 mm Inlet nominal size (DN): 200 mm Connection inlet/outlet sockets: PE-HD pipes in accordance with DIN 19537, PVC-KG pipes in accordance with DIN 19534, PP or AS Clear width of entry (LW): 600 mm Coverage features Type of cover: Cover plate Cover material: Grey iron Colour of cover: black Locking: Lock & Lift Load class: B 125 (EN 124) Tightness: odour-tight and surface water resistant Wastewater contents Separator contents: 880 l Max. grease layer thickness: 475 mm Total volume: 2130 l Contents of sludge trap: 1250 l Storage quantity of grease: 500 l Control Control unit: no
      Title Item no.
      Title Item no.
      Title Item no.
    9151020B Sampling chamber LW 1000, DN 200, Class B 9151020B Show
    915402 Extension section System 400, H: 600 mm, can be shortened 915402 Show
    915880B Sampling chamber LW 400, DN 100/150, class B 915880B Show
    915883B Sampling chamber DN 200, Class B 915883B Show
    917413 Access panel for mounting on-wall 917413 Show
    917414 Access panel for in-wall installation 917414 Show
    917419.00 Direct disposal Disposal connection, right 917419.00 Show
    917419.50 Direct disposal Disposal connection, left 917419.50 Show
    		Direct disposal LW 400, Disposal connection, right 917420.00 Show
    917421 Connection set for underground separators 917421 Show
    917422B Disposal chamber LW 400, underground separators, A/B 917422B Show
    917821 Layer thickness measuring device SonicControl, for grease separators 917821 Show
    917823 SonicControl cable gland Underground separator installation set 917823 Show
    917871 Cable extension 10 m, for SonicControl grease separator 917871 Show
    917872 Cable extension 20 m, for SonicControl grease separator 917872 Show
    917873 Cable extension 30 m, for SonicControl grease separator 917873 Show
      Title Item no.
    680276 Clamping ring for upper sections d: 600 mm 680276 Show
    680278 Removal key for cover plates 680278 Show
    680323 Seal for cover plate, locked 680323 Show
    680324 Upper section d: 630 mm, surface water resistant 680324 Show
    681102 Cover plate LW 600 Lock&Lift, class B, separator 681102 Show
    860104 Seal d: 630 mm, from 01/2015 860104 Show
    917112 Removal tool for 'Goliath' chamber cover 917112 Show
    • Material (material): PE
    • Installation situation (einbausituation): underground installation
    • Nominal size (NS) (nenngroesse): 12,5
    • Load class (belastungsklasse): B 125 (EN 124)
    • Installation depth (einbautiefe): 995  mm
