Universal Plus basement drain
ver.,Variofix,Backw.valve,Waterpr.concr.

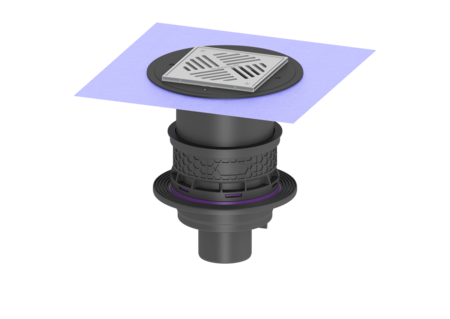

KESSEL Universal Plus basement drain, silver, odour trap, backwater protection Type 5, socket vertical, 2 mechanical backwater flaps, installation depth 309 - 408 mm, yes, floor slab installation
- Sustainable due to use of recycled material
- Inlets above the floor slab, no penetration required
- Vertical outlet for easy installation and easy access to the main drainage pipe
| Item no. | 27651 |
|---|---|
| GTIN | 4026092096888 |
| Price group | 10 |
Universal Plus basement drain ver.,Variofix,Backw.valve,Waterpr.concr.
The polymer Universal Plus basement drain is used for drainage of non-faecal wastewater and is equipped with a removable backwater valve with two backwater flaps and a one hand-lockable emergency closure. Including temporary protective cover. The drain is pressure-waterproof up to 0.6 bar (MFPA Leipzig tested) and radon-tight (IAF Radioökologie GmbH tested). Variant Emergency closure: yes Waterproof flange: Pre-assembled at the factory Waterproofing layer on the upper section: Enclosed sealing collar to be glued (bd) according to DIN 18534 Water exposure class in accordance to DIN 18534-1 (up to and including): W3-I Sealing water height: 60 mm Discharge rate (l/s) with 10 mm threshold: 1,6 Discharge rate (l/s) with 20 mm threshold: 1,7 Mechanical backwater flaps: 2 General characteristics Colour: black Standard: EN 1253 Nominal size (DN): 100 Type of wastewater: without sewage Installation situation: floor slab installation Backwater protection: Type 5 Dimensions Net weight: 4,37 kg Gross weight: 4,88 kg Diameter: 295 mm Cutout dimension, width: 310 mm Cutout dimension, length: 310 mm Adjustment range: 12 - 28 Installation depth: 309 - 408 mm Type of height adjustability: vertically adjustable upper section Height: 270 mm Packaging dimension: length: 443 mm Packaging dimension: width: 338 mm Packaging dimension: height: 466 mm Tank/drain body Socket version: vertical Coverage features Type of cover: Slotted cover made of stainless steel Cover material: Stainless steel 14301 Colour of cover: silver Width of cover: 200 mm Height of cover: 25 mm Length of cover: 200 mm Load class: K 3 (EN 1253-1)
