Lifting station Minilift S
KTP 300-S1, Floor slab, black

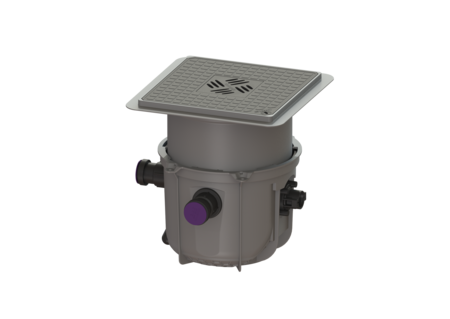

KESSEL Lifting station Minilift S, wastewater without sewage, floor slab installation, Schuko (earthed contact) 2-pin, type of cover Cover plate with slotted cover, with a submersible KTP 300 pump
- Space-saving installation in the floor slab with integrated drainage function
- System ready to plug in
- Easy tool-free maintenance
| Item no. | 280570S |
|---|---|
| GTIN | 4026092082553 |
| Price group | 20 |
Lifting station Minilift S KTP 300-S1, Floor slab, black
The ready to plug in small lifting station for faecal-free wastewater is suitable for wastewater drainage of individual sanitary appliances. The submersible pump with float switch can be removed easily with the help of one-handed closures. The collection tank made of polymer (PE) has an open pump tank and is resistant to aggressive wastewater. The system for installation in the floor slab is preassembled for final installation on site. Variant Type of system: Single unit Pump control: Float switch Backflow preventer: integrated General characteristics Colour: grey Standard: EN 12050-2 Type of wastewater: without sewage Installation situation: floor slab installation Delivery state: Installation-ready (connection parts must be connected on site) ATEX: no Dimensions Net weight: 10,97 kg Gross weight: 12,1 kg Installation depth: 330 - 460 mm Length: 460 mm Width: 380 mm Packaging dimension: length: 445 mm Packaging dimension: width: 445 mm Packaging dimension: height: 466 mm Tank/drain body Pressure pipe connection (DN): 32 Pressure pipe connection (OD): 40 mm Inlet nominal size (OD): 60 mm Inlet nominal size (DN): 50 mm Pumping volume: 7 l Coverage features Type of cover: Cover plate with slotted cover Cover material: Polymer Colour of cover: black Width of cover: 366 mm Length of cover: 366 mm Locking: Lock & Lift Load class: K 3 (EN 1253-1) Pumping device Pump: KTP 300 Number of pumps: 1 Connection type: Schuko (earthed contact) 2-pin Rated current: 1,6 A Protection class (pump): IP 68 (3m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Hot water resistance for a short time (2 min): 80 °C Max. pumping capacity: 8 m³/h Max. pumping height: 6 m Speed: 2800 U/min Power P1: 0,34 kW Power P2: 0,21 kW Operating mode: S1 Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Free passage: 10 mm Length of mains cable for pump: 5 m Control Mains frequency: 50 Hz Operating voltage: 230 V Connection type: Schuko (earthed contact) 2-pin Type of fuse required (electrical protection): C 16 A
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Basic alarm unit with electronic probe | 20222 | Show |
 | Basic alarm unit with optical probe | 20223 | Show |
 | Adapter DN 50/70 | 27126 | Show |
 | Adapter DN 100/70 | 27602 | Show |
 | Pressure pipe set 5 m pressure hose, DA 40 mm | 28040 | Show |
 | Adapter for pressure pipe connection, DN 32, PE | 28086 | Show |
 | Inlet socket DN 50, with seal, Threaded ring | 39005 | Show |
 | Inlet socket DN 70, with seal, Threaded ring | 39007 | Show |
 | Odour trap Multistop, System 125 | 48500 | Show |
 | Odour trap Megastop | 48550 | Show |
 | Hole saw for DN 50/70/100 | 500101 | Show |
 | Odour trap for The Ultraflat 79 | 680696 | Show |
 | Drain body for cover plate for odour trap 50 mm, black | 680795 | Show |
 | Drain body for cover plate for Multistop, black | 680796 | Show |
 | Drain body for cover plate for odour trap 50 mm, grey | 680797 | Show |
 | Drain body for cover plate for Multistop, grey | 680798 | Show |
 | Potential-free contact Extension set for control units Basic | 80074 | Show |
 | Cover plate surface water resistant, black 366x366mm | 830050 | Show |
 | Cover plate surface water resistant, tileable | 830052 | Show |
 | Extension section deeper installation, with flange | 830070 | Show |
 | Seal for pipe penetration, DN 50 | 850114 | Show |
 | Seal for pipe penetration, DN 70 | 850116 | Show |
| Title | Item no. | ||
|---|---|---|---|
 | Impeller KTP 300, with intake cover | 28039 | Show |
 | Replacement pump KTP 300 for Minilift | 28836 | Show |
| Inlet socket DN 50, with seal, Threaded ring | 39005 | Show |
 | Slotted cover 138x138 mm, Polymer | 60101S | Show |
 | Locking key for Ecoguss slotted gratings,Lock & Lift | 67007 | Show |
 | Intake cage with push-fit fastener, for KTP 300 | 680013 | Show |
 | Seal O-ring for pressure pipe connection | 680014 | Show |
 | One-handed closure for backflow preventer | 680018 | Show |
 | Seal for pressure pipe connection | 680067 | Show |
 | Pressure pipe connection with seal and screws | 680758 | Show |
 | Pressure pipe connection KTP 300 | 680759 | Show |
 | Pump connection Minilift, Aqualift S | 680760 | Show |
 | Flap housing Mono, with pump connector | 680761 | Show |
 | Turn fastener for pump connection lock | 680762 | Show |
 | Seal for cover plate, System 330 mm | 686114 | Show |
 | Seal Lip seal, System 330 mm | 686115 | Show |
 | Cover plate black with slotted cover | 830053 | Show |
 | Upper section D=330 mm, height adjustable up to 170 mm | 830061 | Show |
| Manuals | |
|---|---|
| CAD Data | |
| Declaration of Conformity |
- Cover material (abdeckung_material):
Polymer
- TÜV test mark (pruefzeichen):
ID 1111241937
- Installation situation (einbausituation):
floor slab installation
- CE marking (ce_kennzeichnung):
yes
- Type of wastewater (abwasserart_de): without sewage
- Type of cover (abdeckungsart): Cover plate with slotted cover
- Load class (belastungsklasse): K 3 (EN 1253-1)
- Pump (pumpe): KTP 300
- (ausfuehrung):
