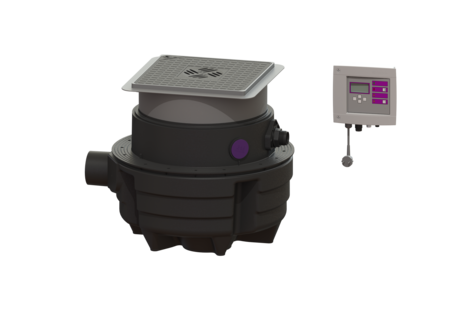

Lifting station Aqualift F Comp.

Mono, SPZ 1000, Floor slab, black

28701S
28701S
PDF product data sheet

KESSEL Lifting station Aqualift F Comp. Mono, wastewater with sewage, type of cover Cover plate with slotted cover, floor slab installation, installation depth 490 - 600 mm, with a submersible SPZ 1000 pump

  • Suitable for complete basement drainage
  • Integrated drainage function when installed in the floor slab
  • Maximum operating reliability due to intelligent control unit (Duo)
Item no. 28701S
GTIN 4026092073063
Price group 20

    Lifting station Aqualift F Comp. Mono, SPZ 1000, Floor slab, black
    The lifting station for faecal and faecal-free wastewater is equipped with one or two submersible pumps and a backflow preventer. The collection tank made of permanently resistant polymer (PE) has an enclosed pump tank. One-handed closures enable easy removal of the integrated components. Variant Type of system: Single unit Shut-off valve: without shut-off valve Pump control: Control unit Backflow preventer: integrated Pressure pipe connection: horizontal General characteristics Colour: black Type of wastewater: with sewage Installation situation: floor slab installation Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected) Approval: Z-53.2-484 System type: Mono ATEX: no Odour trap: Multistop Dimensions Net weight: 33,4 kg Gross weight: 37 kg Groundwater resistant from lower edge of base section: 3000 mm Cutout dimension, width: 800 mm Cutout dimension, length: 800 mm Installation depth: 490 - 600 mm Type of height adjustability: vertically adjustable upper section Length: 670 mm Width: 590 mm Packaging dimension: length: 620 mm Packaging dimension: width: 620 mm Packaging dimension: height: 1030 mm Tank/drain body Pressure pipe connection (DN): 32 Pressure pipe connection (OD): 40 mm Connection conduit pipe (DN): 50 Venting connection (DN): 70 Distance from centre of outlet pipe to tank bottom: 351 mm Distance pipe bottom outlet to tank bottom: 351 mm Distance pipe bottom inlet to tank bottom: 152 mm Distance from centre of inlet pipe to tank bottom: 207 mm Inlet nominal size (OD): 110 mm Inlet nominal size (DN): 100 mm Number of inlets: 1 Pumping volume: 20 l Tank volume: 40 l Coverage features Type of cover: Cover plate with slotted cover Cover material: Polymer Colour of cover: black Width of cover: 366 mm Length of cover: 366 mm Drainage function: yes Locking: Lock & Lift Pumping device Pump: SPZ 1000 Number of pumps: 1 Weight, pump: 10 kg Connection type: coded plug Rated current: 5,2 A Protection class: I Insulation class: F Cos phi - power factor: 0,97 Protection class (pump): IP 68 (3m/48h) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Hot water resistance for a short time (2 min): 80 °C Max. pumping capacity: 11,5 m³/h Max. pumping height: 10 m Speed: 2800 U/min Power P1: 1,2 kW Power P2: 0,69 kW Operating mode: S3 - 50 % Type of fuse required (electrical protection): Fuse protection through control unit 230 V Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Macerator Length of mains cable for pump: 5 m Control Control unit: Comfort Control unit function: With alarm message Motor protection switch: yes Alarm sensor: optical probe Level measurement instrument: Immersion pipe Type of level measurement: pneumatic Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 230 V Connection type: coded plug Length of mains cable for control unit: 1,4 m Potential-free contact: optional GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Warning equipment version: acoustic and optical signal Rated current: 5,2 A Type of fuse required (electrical protection): Fuse protection through control unit 230 V
      Title Item no.
      Title Item no.
      Title Item no.
    20162 Remote signal generator 20 m cable, 2x0.75 q 20162 Show
    28016 Retrofit kit Alarm float switch 28016 Show
    28048 Compressor set for air bubbling 28048 Show
    28792 TeleControl GSM modem for Comfort control units 230V/400V 28792 Show
    80072 Potential-free contact Additio. circuit board for control units 80072 Show
    80889 Cable accessories Extension for probe 80889 Show
    80891 Cable accessories Extension for pump 80891 Show
    83070 Extension section H: 200 mm 83070 Show
    83073 Extension section H: 234 mm, with flange and mating flange 83073 Show
    83075 Extension section H: 360 mm, with central flange 83075 Show
    83077 Waterproof concrete install. kit OD: 40 mm, for building contractors 83077 Show
      Title Item no.
    28075 Knife replacement set KTP 1000 / SPZ 1000 28075 Show
    28706 Splash guard set for optical probe 28706 Show
    28731 Control unit Comfort Mono, 230 V 28731 Show
    28732 Cover for pump opening 28732 Show
    28733 Pump plate Aqualift F Compact 28733 Show
    28734 Connector Immersion pipe 28734 Show
    28739 Replacement pump KTP/SPZ 1000 230 V, with extended press. pipe connec. 28739 Show
    28744 Immersion pipe Aqualift F Compact, 5 m Schlauch 28744 Show
    48500 Odour trap Multistop, System 125 48500 Show
    680018 One-handed closure for backflow preventer 680018 Show
    680034 Battery 9 V block 680034 Show
    680065 Pump connection for pumping stations, up to 12/2015 680065 Show
    680067 Seal for pressure pipe connection 680067 Show
    680070 Turn fastener for pumps 680070 Show
    680075 Drain connection DN 70, for Pumpfix, Ecolift, Aqualift F 680075 Show
    680076 Cover with seal 680076 Show
    680150 Seal for upper section, from 07/2014 680150 Show
    680453 Seal set Aqualift F Compact Mono 680453 Show
    680486 Pump connection Aqualift F Compact, Mono, from 01/2016 680486 Show
    680696 Odour trap for The Ultraflat 79 680696 Show
    686114 Seal for cover plate, System 330 mm 686114 Show
    80888 Spare part set, optical probe 5 m cable 80888 Show
    80892 Adapter Set optical probe 80892 Show
    830055 Cover plate 366 x 366 mm high drain body, 50mm odour trap, tilea. 830055 Show
    830065 Upper section system 400 Lockable, silver-grey 830065 Show
    • Type of wastewater (abwasserart_de): with sewage
    • Control unit (schaltgeraet): Comfort
    • Cover material (abdeckung_material): Polymer
    • Installation situation (einbausituation): floor slab installation
    • Type of cover (abdeckungsart): Cover plate with slotted cover
    • Pump (pumpe): SPZ 1000
    • Installation depth (einbautiefe): 490  mm
    • Odour trap (geruchsverschluss): Multistop
    • (ausfuehrung):
