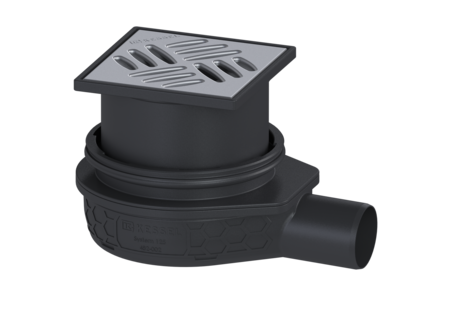

The Ultraflat 79 floor drain
DN 50, Slotted grating
KESSEL The Ultraflat 79 floor drain, cover length 120 mm, socket lateral, nominal size (DN) 50, volume 71,33 dm³, type of cover Slotted cover, locking unlocked, design cover, Sealing water height 50 mm
- Low installation depth
- Scientifically confirmed sound insulation effect
- different design covers
| Item no. | 44700.20 |
|---|---|
| GTIN | 4026092080900 |
| Price group | 10 |
The Ultraflat 79 floor drain DN 50, Slotted grating
The Ultraflat 79 floor drain is suitable for indoor floor drainage. The polymer drain is equipped with a removable odour trap in the upper section. Variant System: 125 Seepage opening: optional Sealing water height: 50 mm General characteristics Standard: EN 1253-1 Nominal size (DN): 50 Outer diameter (OD): 50 mm Odour trap: included Dimensions Vertical adjustment: 88 - 139 mm Net weight: 0,51 kg Gross weight: 0,66 kg Type of height adjustability: vertically adjustable upper section Length: 227 mm Width: 163 mm Height: 79 mm Packaging dimension: length: 590 mm Packaging dimension: width: 390 mm Packaging dimension: height: 310 mm Tank/drain body Number of outlets: 1 Material of drain body: ABS Socket version: lateral Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Colour of cover: silver Width of cover: 120 mm Height of cover: 16 mm Length of cover: 120 mm Surface: Polished SST Frame material: ABS Locking: unlocked Load class: K 3 (EN 1253-1) Slip resistance class: R9 according to DIN 51130; C according to DIN 51097 Rim width: 130 mm Rim length: 130 mm Shape of upper section: square Upper section material: ABS
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Adapter DN 50/40 | 27118 | Show |
 | Installation aid set for The Ultraflat 54 & 79 drain body | 44702 | Show |
 | Clip flange The Ultraflat 79, Ecoguss, Practicus | 44703 | Show |
 | Hair filter for The Ultraflat 54 & 79, System 125 | 44704 | Show |
 | Extension section H: 140 mm, with glued flange | 48403 | Show |
 | Extension section H: 147 mm, with pressure sealing flange | 48404 | Show |
 | Odour trap Multistop, System 125 | 48500 | Show |
 | Odour trap Megastop | 48550 | Show |
 | Extension section H: 120 mm, with glued flange | 48900 | Show |
 | Extension section H: 136 mm, without inlet | 48987 | Show |
 | Extension section H: 136 mm, with side inlet DN 50 | 48989 | Show |
| Manuals | |
|---|---|
| CAD Data | |
| Test Reports and Certificates |
- Nominal size (DN) (nennweite):
50
- Material of drain body (material_grundkoerper):
ABS
- Cover material (abdeckung_material):
Stainless steel 14301
- Frame material (rahmen_material):
ABS
- Upper section material (material_aufsatzstueck):
ABS
- Socket version (stutzen_ausfuehrung):
lateral
