Light liquid trap

DN 100, Slotted grating, with odour trap

51101
51101
PDF product data sheet

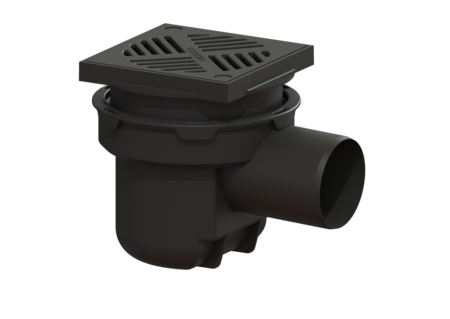

KESSEL Light liquid trap, nominal size (DN) 100, odour trap included, type of cover Slotted cover, Cover Polymer, length 320 mm

  • Blocks the path of light liquids in the event of an accident/emergency
  • Including odour trap
Item no. 51101
GTIN 4026092029763
Price group 10

Light liquid trap DN 100, Slotted grating, with odour trap
The light liquid trap made of polymer is suitable for floor slab installation and is equipped with an odour trap and a sludge bucket. The upper section with slotted grating is vertically adjustable. Variant Contents of sludge trap: yes Sealing water height: 50 mm Discharge rate (l/s) with 20 mm threshold: 1 Mechanical backwater flaps: 2 General characteristics Standard: EN 1253-3 Nominal size (DN): 100 Outer diameter (OD): 110 mm Backwater protection: Type 5 Odour trap: included Dimensions Vertical adjustment: 30 - 90 mm Net weight: 2,37 kg Gross weight: 2,69 kg Cutout dimension, width: 250 mm Cutout dimension, length: 400 mm Installation depth: 216 - 276 mm Type of height adjustability: vertically adjustable upper section Length: 320 mm Width: 243 mm Packaging dimension: length: 380 mm Packaging dimension: width: 295 mm Packaging dimension: height: 257 mm Tank/drain body Material of drain body: Polymer Coverage features Type of cover: Slotted cover Cover material: Polymer Colour of cover: black Width of cover: 188 mm Length of cover: 188 mm Load class: K 3 (EN 1253-1) Rim width: 200 mm Rim length: 200 mm Shape of upper section: square Upper section material: Polymer Contents of sludge trap: yes
  Title Item no.
  Title Item no.
  Title Item no.
27298 Extension section with pressure sealing flange, mating fl. 27298 Show
27602 Adapter DN 100/70 27602 Show
27609 Anti-rat protection Insert made of stainless steel 27609 Show
48958 Extension section Pressure sealing flange, Mating flange 48958 Show
48982 Membrane for System 200, Waterproof concrete 48982 Show
48988 Extension section System 200, H: 175 mm 48988 Show
  Title Item no.
27604 Sludge bucket for basement drain "The Universale" 27604 Show
27607 Floater set with odour trap 27607 Show
27613 Slotted cover 188x188 mm, polymer, black 27613 Show
27714 Upper section for plastic grating 27714 Show
48954 Upper section with a stainless steel cover 48954 Show
48968 Variofix upper section System 200, slotted cover, 304 SST, K 3 48968 Show
680081 Seal for float switch 680081 Show
  • Nominal size (DN) (nennweite): 100
  • Material of drain body (material_grundkoerper): Polymer
  • Cover material (abdeckung_material): Polymer
  • TÜV test mark (pruefzeichen): ID 1111242696
  • CE marking (ce_kennzeichnung): yes
  • Upper section material (material_aufsatzstueck): Polymer
  • Load class (belastungsklasse): K 3 (EN 1253-1)
  • Odour trap (geruchsverschluss): included
  • Contents of sludge trap (schlammeimer): yes
