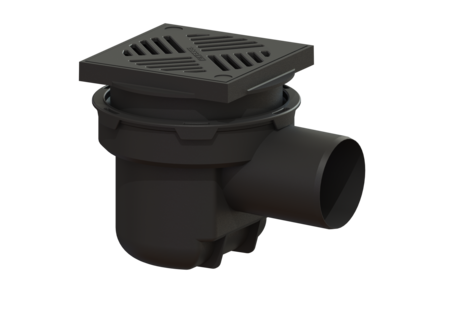

Light liquid trap
DN 100, slot grat., with backw. Prot-
KESSEL Light liquid trap, nominal size (DN) 100, odour trap no, type of cover Slotted cover, Cover Polymer, length 320 mm
- Blocks the path of light liquids in the event of an accident/emergency
- Including odour trap
| Item no. | 52101 |
|---|---|
| GTIN | 4026092029770 |
| Price group | 10 |
Light liquid trap DN 100, slot grat., with backw. Prot-
The light liquid trap made of polymer is suitable for floor slab installation and is equipped with an odour trap and a sludge bucket. The upper section with slotted grating is vertically adjustable. Variant Contents of sludge trap: yes Sealing water height: 50 mm Discharge rate (l/s) with 20 mm threshold: 1 Mechanical backwater flaps: 2 General characteristics Standard: EN 1253-3 Nominal size (DN): 100 Outer diameter (OD): 110 mm Backwater protection: Type 5 Odour trap: no Dimensions Vertical adjustment: 30 - 90 mm Net weight: 2,55 kg Gross weight: 2,88 kg Cutout dimension, width: 250 mm Cutout dimension, length: 400 mm Installation depth: 216 - 276 mm Type of height adjustability: vertically adjustable upper section Length: 320 mm Width: 243 mm Packaging dimension: length: 380 mm Packaging dimension: width: 295 mm Packaging dimension: height: 257 mm Tank/drain body Material of drain body: Polymer Coverage features Type of cover: Slotted cover Cover material: Polymer Colour of cover: black Width of cover: 188 mm Length of cover: 188 mm Load class: K 3 (EN 1253-1) Rim width: 200 mm Rim length: 200 mm Shape of upper section: square Upper section material: Polymer Contents of sludge trap: yes
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Extension section with pressure sealing flange, mating fl. | 27298 | Show |
 | Adapter DN 100/70 | 27602 | Show |
 | Anti-rat protection Insert made of stainless steel | 27609 | Show |
 | Extension section Pressure sealing flange, Mating flange | 48958 | Show |
 | Membrane for System 200, Waterproof concrete | 48982 | Show |
 | Extension section System 200, H: 175 mm | 48988 | Show |
| Title | Item no. | ||
|---|---|---|---|
 | Sludge bucket for basement drain "The Universale" | 27604 | Show |
 | Floater set with backwater valve and odour trap | 27606 | Show |
 | Slotted cover 188x188 mm, polymer, black | 27613 | Show |
 | Upper section for plastic grating | 27714 | Show |
 | Upper section with a stainless steel cover | 48954 | Show |
 | Variofix upper section System 200, slotted cover, 304 SST, K 3 | 48968 | Show |
 | Seal for float switch | 680081 | Show |
| Manuals | |
|---|---|
| CAD Data | |
| Declaration of Conformity |
- Nominal size (DN) (nennweite): 100
- Material of drain body (material_grundkoerper):
Polymer
- Cover material (abdeckung_material): Polymer
- CE marking (ce_kennzeichnung):
yes
- Upper section material (material_aufsatzstueck):
Polymer
- Load class (belastungsklasse): K 3 (EN 1253-1)
- Odour trap (geruchsverschluss): no
