Pumping station Aquapump Small

Mono, Basic, STF 1300-S3

829710
PDF product data sheet

KESSEL Pumping station Aquapump Small, Mono, wastewater for wastewater with and without sewage, Wet installation, with a submersible STF 1300 pump

  • Including backflow preventer for the pressure pipe
  • Including openings for inlet, ventilation and cable duct
  • Easy tool-free maintenance
Item no. 829710
GTIN 4026092083598
Price group 20

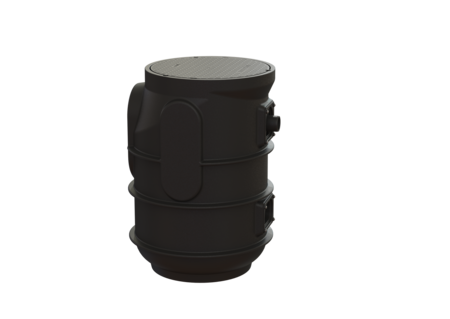

Pumping station Aquapump Small Mono, Basic, STF 1300-S3
The pumping station for wastewater with and without sewage is suitable for underground installations and is equipped with a backflow preventer for the pressure pipe. The PE tank is resistant to domestic wastewater and includes a pedestrian class polymer cover plate. The pump with multi-vane impeller ensures maximum operating reliability. Quick-release closures enable the integrated components to be removed easily. The components are pre-assembled for final assembly on site. Including openings for inlet, ventilation and cable duct. Variant Type of system: Single unit Installation: Wet installation Pump control: Float switch Backflow preventer: integrated General characteristics Colour: black Standard: EN 12050-2 as well as EN 12050-1 (without ATEX requirements) Type of wastewater: for wastewater with and without sewage Installation situation: underground installation System type: Mono ATEX: no Dimensions Net weight: 26 kg Gross weight: 32 kg Length: 615 mm Width: 600 mm Height: 830 mm Packaging dimension: length: 792 mm Packaging dimension: width: 653,81 mm Packaging dimension: height: 916,32 mm Tank/drain body Pressure pipe connection (DN): 50 Pressure pipe connection (OD): 63 mm Inlet max. scoring (DN): 100 mm Pumping volume: 25 l Coverage features Type of cover: Round cover plate Colour of cover: black Locking: locked Load class: up to 300 kg Pumping device Pump: STF 1300 Number of pumps: 1 Weight, pump: 10 kg Connection type: coded plug Rated current: 6 A Protection class: I Insulation class: F Protection class (pump): IP 68 (3m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 21 m³/h Max. pumping height: 10 m Speed: 2650 U/min Power P1: 1,3 kW Power P2: 0,8 kW Operating mode: S3 - 50 % Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Free passage: 40 mm Length of mains cable for pump: 10 m Control Motor protection switch: yes Level measurement instrument: Float switch Mains frequency: 50 Hz Operating voltage: 230 V Connection type: coded plug Type of fuse required (electrical protection): C 16 A
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
680150 Seal for upper section, from 07/2014 680150 Show
680380 One-handed closure DN 63 680380 Show
680382 Backflow preventer right, with non-return flap 680382 Show
680630 Non-return flap for Pumpfix XL 680630 Show
680801 Cover plate round, incl. screws and seal 680801 Show
680802 Flap housing with pressure piping, DA: 50 mm 680802 Show
680803 Replacement pump STF 1300 230 V, with float switch 680803 Show
680804 Multi-vane impeller for STF 1300 680804 Show
680805 Spiral housing for STF 1300 680805 Show
680807 Pressure pipe connection for pumping stations Mono 680807 Show
  • TÜV test mark (pruefzeichen): ID 1111241940
  • Installation situation (einbausituation): underground installation
  • Type of wastewater (abwasserart_de): for wastewater with and without sewage
  • Load class (belastungsklasse): up to 300 kg
  • Pump (pumpe): STF 1300
  • Impeller type (laufrad_typ): Multi-vane impeller
  • (schaltgeraet):
