Drain body basement drain
DN 100, 3 inlets, with odour trap
KESSEL Drain body basement drain, nominal size (DN) 100, volume 28,81 dm³
| Item no. | 29101 |
|---|---|
| GTIN | 4026092085158 |
| Price group | 10 |

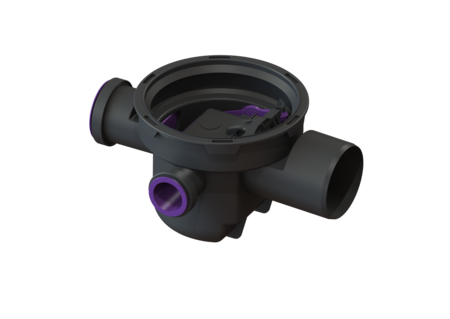

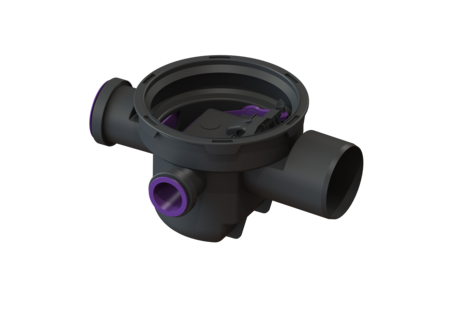

Drain body basement drain DN 100, 3 inlets, with odour trap
The polymer drain body is equipped with a removable odour trap, two inlets DN 50 and one inlet DN 70 with blind plug. Variant Sealing water height: 60 mm Discharge rate (l/s) with 20 mm threshold: 1,8 General characteristics Colour: black Standard: EN 1253-1 Nominal size (DN): 100 Outer diameter (OD): 110 mm Type of wastewater: without sewage Installation situation: floor slab installation Odour trap: included Dimensions Net weight: 3,55 kg Gross weight: 3,55 kg Length: 380 mm Width: 285 mm Height: 190 mm Packaging dimension: length: 380 mm Packaging dimension: width: 295 mm Packaging dimension: height: 257 mm Tank/drain body Material of drain body: PP Socket version: lateral
| Title | Item no. | ||
|---|---|---|---|
 | Upper section with a stainless steel cover | 48954 | Show |
 | Upper section Black slotted cover, 200 x 200 mm, K 3 | 48964 | Show |
 | Variofix upper section System 200, slotted cover, 304 SST, K 3 | 48968 | Show |
 | Variofix upper section System 200, slot grat., 304 SST, L 15 | 48969 | Show |
 | Variofix upper section System 200, Slotted cover, 304 SST, L 15 | 48978 | Show |
 | Ferrofix upper section Sys200, slot grat, 304SST, 200 x 200 mm | 57410 | Show |
 | Ferrofix upper section Sys200, slot grat, 304SST, 300 x 300 mm | 57415 | Show |
 | Upper section Class B, Round slotted grating, d:230 mm | 67985 | Show |
| Title | Item no. |
|---|
- Nominal size (DN) (nennweite): 100
- Material of drain body (material_grundkoerper):
PP
- Socket version (stutzen_ausfuehrung):
lateral
- (abdeckung_material):
- (belastungsklasse):
- Installation situation (einbausituation):
floor slab installation
- Type of wastewater (abwasserart_de):
without sewage
- (rueckstauschutz):
- Odour trap (geruchsverschluss): included
- (verriegelung):
- (wu-flansch):
- Contents of sludge trap (schlammeimer):
