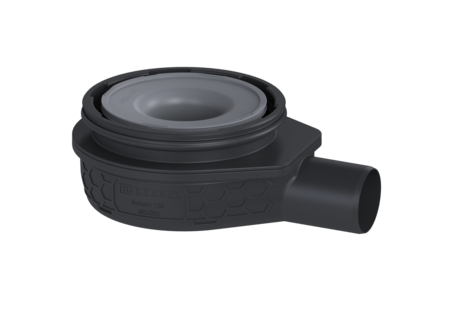

The Ultraflat 79 drain body
DN 50, Odour trap 50 mm
KESSEL The Ultraflat 79 drain body, length 227 mm, locking, design cover, Sealing water height 50 mm, waterproofing layer drain body by
- including removable odour trap in the upper section
- Low installation depth
- Scientifically confirmed sound insulation effect
| Item no. | 44700 |
|---|---|
| GTIN | 4026092080733 |
| Price group | 10 |
The Ultraflat 79 drain body DN 50, Odour trap 50 mm
The drain body for floor drains. The Ultraflat 79 is made of polymer and is equipped with a removable odour trap for installation in an upper section. Variant System: 125 Seepage opening: optional Sealing water height: 50 mm General characteristics Standard: EN 1253-1 Nominal size (DN): 50 Outer diameter (OD): 50 mm Odour trap: included Dimensions Net weight: 0,36 kg Gross weight: 0,4 kg Length: 227 mm Width: 163 mm Height: 79 mm Packaging dimension: length: 226,9 mm Packaging dimension: width: 163 mm Packaging dimension: height: 84,2 mm Tank/drain body Number of outlets: 1 Material of drain body: ABS
| Title | Item no. | ||
|---|---|---|---|
 | Upper section Slot cover, 304 SST, 130 x 130 mm, K3 | 48165 | Show |
 | Upper section Black slotted cover , 150 x 150 mm, K 3 | 48193 | Show |
 | Upper section Kessel des cov, 304 SST, Lock&Lift, L15 | 48201 | Show |
 | Upper section Oval des cov, 304 SST, Lock&Lift, L 15 | 48202 | Show |
 | Upper section Kessel des cov, 316SST, Lock&Lift, L15 | 48203 | Show |
 | Variofix upper section Kessel des cover, 316SST, Lock&Lift, L15 | 48204 | Show |
 | Variofix upper section Slotted cover, 316 SST, K 3 | 48206 | Show |
 | Upper section Slot cover, 316 SST, 150 x 150 mm, K3 | 48209 | Show |
 | Upper section tileable, 304 SST, K 3 | 48211 | Show |
 | Upper section Slot design cover, 304 SST, K 3 | 48218 | Show |
 | Upper section Slot des cov, 304 SST, Lock&Lift, K3 | 48219 | Show |
 | Upper section Spot design cover, 304 SST, K 3 | 48220 | Show |
 | Upper section Spot des cover, 304SST, Lock&Lift, K3 | 48221 | Show |
 | Upper section Kessel design cover, 304 SST, L 15 | 48225 | Show |
 | Upper section Oval design cover, 304 SST, L 15 | 48226 | Show |
 | Upper section Oval des cover, 316SST, Lock&Lift, L15 | 48227 | Show |
 | Upper section Oval design cover, 316 SST, L 15 | 48228 | Show |
 | Variofix upper section Design cover Slot, 304 st., K 3 | 48618 | Show |
 | Variofix upper section Design cover Slot, 304 st., L&L, K 3 | 48619 | Show |
 | Variofix upper section Designrost Spot, V2A, K 3 | 48620 | Show |
 | Variofix upper section Designrost Spot, V2A, Lock & Lift, K 3 | 48621 | Show |
 | Variofix upper section Designrost Kessel, V2A, L 15 | 48625 | Show |
 | Variofix upper section Designrost Oval, V2A, L 15 | 48626 | Show |
 | Variofix upper section Designrost Oval, V4A, Lock & Lift, L 15 | 48669 | Show |
 | Variofix upper section Designrost Oval, V4A, L 15 | 48670 | Show |
 | Variofix upper section Kessel des cov, 304 SST, Lock&Lift, L15 | 48904 | Show |
 | Variofix upper section Designrost Oval, V2A, Lock & Lift, L 15 | 48905 | Show |
 | Variofix upper section tileable, 304 st., K 3 | 48906 | Show |
 | Upper section Slot cover, 304 SST, 150 x 150 mm, K3 | 48950 | Show |
 | Variofix upper section Slotted cover, 304 SST, K 3 | 48963 | Show |
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Adapter DN 50/40 | 27118 | Show |
 | Installation aid set for The Ultraflat 54 & 79 drain body | 44702 | Show |
 | Clip flange The Ultraflat 79, Ecoguss, Practicus | 44703 | Show |
 | Hair filter for The Ultraflat 54 & 79, System 125 | 44704 | Show |
 | Extension section H: 140 mm, with glued flange | 48403 | Show |
 | Extension section H: 147 mm, with pressure sealing flange | 48404 | Show |
 | Odour trap Multistop, System 125 | 48500 | Show |
 | Odour trap Megastop | 48550 | Show |
 | Extension section H: 120 mm, with glued flange | 48900 | Show |
 | Extension section H: 136 mm, without inlet | 48987 | Show |
 | Extension section H: 136 mm, with side inlet DN 50 | 48989 | Show |
| Manuals | |
|---|---|
| CAD Data | |
| Test Reports and Certificates |
- Nominal size (DN) (nennweite):
50
- Material of drain body (material_grundkoerper):
ABS
- TÜV test mark (pruefzeichen):
ID 1111244461
