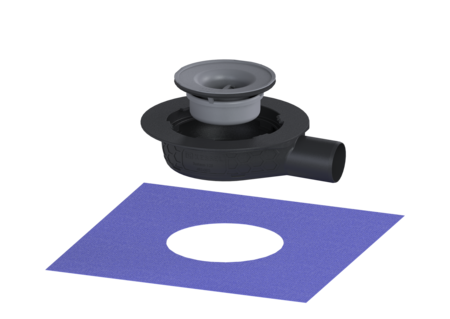

The Ultraflat 54 drain body

DN 50, enclWPM, Odour trap 22 mm

44750
PDF product data sheet

KESSEL The Ultraflat 54 drain body, length 246 mm, outside diameter (OD) 50 mm, locking, design cover, Sealing water height 22 mm, waterproofing layer drain body by Enclosed sealing collar to be glued (bd) according to DIN 18534

  • including removable odour trap in the upper section
  • Low installation depth
  • Scientifically confirmed sound insulation effect
Item no. 44750
GTIN 4026092080726
Price group 10

    The Ultraflat 54 drain body DN 50, enclWPM, Odour trap 22 mm
    The drain body for floor drains. The Ultraflat 54 is made of polymer and is equipped with a removable odour trap for installation in an upper section. Open seepage water opening, no flooding of the waterproofing level in the event of build-up. Variant System: 125 Seepage opening: optional Waterproofing layer on the drain body: Enclosed sealing collar to be glued (bd) according to DIN 18534 Water exposure class in accordance to DIN 18534-1 (up to and including): W2-I Sealing water height: 22 mm General characteristics Nominal size (DN): 50 Outer diameter (OD): 50 mm Odour trap: included Dimensions Net weight: 0,36 kg Gross weight: 0,4 kg Length: 246 mm Width: 200 mm Height: 54 mm Packaging dimension: length: 245,7 mm Packaging dimension: width: 200,6 mm Packaging dimension: height: 59,2 mm Tank/drain body Number of outlets: 1 Material of drain body: ABS
      Title Item no.
    48165 Upper section Slot cover, 304 SST, 130 x 130 mm, K3 48165 Show
    48193 Upper section Black slotted cover , 150 x 150 mm, K 3 48193 Show
    48201 Upper section Kessel des cov, 304 SST, Lock&Lift, L15 48201 Show
    48202 Upper section Oval des cov, 304 SST, Lock&Lift, L 15 48202 Show
    48203 Upper section Kessel des cov, 316SST, Lock&Lift, L15 48203 Show
    48204 Variofix upper section Kessel des cover, 316SST, Lock&Lift, L15 48204 Show
    48206 Variofix upper section Slotted cover, 316 SST, K 3 48206 Show
    48209 Upper section Slot cover, 316 SST, 150 x 150 mm, K3 48209 Show
    48211 Upper section tileable, 304 SST, K 3 48211 Show
    48218 Upper section Slot design cover, 304 SST, K 3 48218 Show
    48219 Upper section Slot des cov, 304 SST, Lock&Lift, K3 48219 Show
    48220 Upper section Spot design cover, 304 SST, K 3 48220 Show
    48221 Upper section Spot des cover, 304SST, Lock&Lift, K3 48221 Show
    48225 Upper section Kessel design cover, 304 SST, L 15 48225 Show
    48226 Upper section Oval design cover, 304 SST, L 15 48226 Show
    48227 Upper section Oval des cover, 316SST, Lock&Lift, L15 48227 Show
    48228 Upper section Oval design cover, 316 SST, L 15 48228 Show
    48618 Variofix upper section Design cover Slot, 304 st., K 3 48618 Show
    48619 Variofix upper section Design cover Slot, 304 st., L&L, K 3 48619 Show
    48620 Variofix upper section Designrost Spot, V2A, K 3 48620 Show
    48621 Variofix upper section Designrost Spot, V2A, Lock & Lift, K 3 48621 Show
    48625 Variofix upper section Designrost Kessel, V2A, L 15 48625 Show
    48626 Variofix upper section Designrost Oval, V2A, L 15 48626 Show
    48669 Variofix upper section Designrost Oval, V4A, Lock & Lift, L 15 48669 Show
    48670 Variofix upper section Designrost Oval, V4A, L 15 48670 Show
    48904 Variofix upper section Kessel des cov, 304 SST, Lock&Lift, L15 48904 Show
    48905 Variofix upper section Designrost Oval, V2A, Lock & Lift, L 15 48905 Show
    48906 Variofix upper section tileable, 304 st., K 3 48906 Show
    48950 Upper section Slot cover, 304 SST, 150 x 150 mm, K3 48950 Show
    48963 Variofix upper section Slotted cover, 304 SST, K 3 48963 Show
      Title Item no.
      Title Item no.
    27118 Adapter DN 50/40 27118 Show
    44702 Installation aid set for The Ultraflat 54 & 79 drain body 44702 Show
    44704 Hair filter for The Ultraflat 54 & 79, System 125 44704 Show
    48500 Odour trap Multistop, System 125 48500 Show
    48550 Odour trap Megastop 48550 Show
    48987 Extension section H: 136 mm, without inlet 48987 Show
    48989 Extension section H: 136 mm, with side inlet DN 50 48989 Show
      Title Item no.
    • Nominal size (DN) (nennweite): 50
    • Material of drain body (material_grundkoerper): ABS
