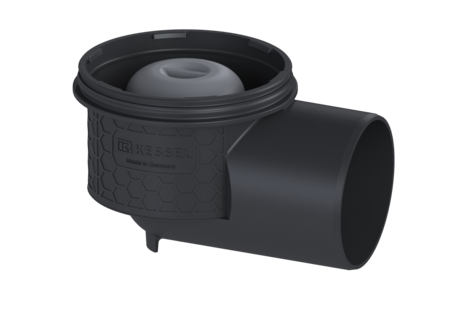

Practicus drain body

DN 100, Horizontal outlet

45110
45110
PDF product data sheet

KESSEL Practicus drain body, type of waterproofing, socket lateral, nominal size (DN) 100, odour trap included, drainage by Point drain, waterproofing layer upper section by Connection flange

  • Hygiene: hygienic, absolutely corrosion-free and durable material
  • absolutely corrosion-free and durable material
Item no. 45110
GTIN 4026092033562
Price group 10

Practicus drain body DN 100, Horizontal outlet
In combination with an upper section, the Practicus polymer drain body is used for point drainage and is equipped with a removable odour trap and a temporary protective cover. The drain meets particular sound insulation requirements in accordance with the measurements of the Fraunhofer Institute in Stuttgart. Variant System: 125 Waterproofing layer on the upper section: Connection flange Waterproofing layer on the drain body: Connection flange Sealing water height: 50 mm General characteristics Nominal size (DN): 100 Outer diameter (OD): 110 mm Odour trap: included Dimensions Net weight: 0,73 kg Gross weight: 0,83 kg Diameter: 135 mm Height: 132 mm Packaging dimension: length: 200 mm Packaging dimension: width: 200 mm Packaging dimension: height: 175 mm Tank/drain body Number of outlets: 1 Connection inlet/outlet sockets: The outlet spigot is suitable for connection to SML pipes. Material of drain body: PP Socket version: lateral
  Title Item no.
48165 Upper section Slot cover, 304 SST, 130 x 130 mm, K3 48165 Show
48193 Upper section Black slotted cover , 150 x 150 mm, K 3 48193 Show
48201 Upper section Kessel des cov, 304 SST, Lock&Lift, L15 48201 Show
48202 Upper section Oval des cov, 304 SST, Lock&Lift, L 15 48202 Show
48203 Upper section Kessel des cov, 316SST, Lock&Lift, L15 48203 Show
48204 Variofix upper section Kessel des cover, 316SST, Lock&Lift, L15 48204 Show
48206 Variofix upper section Slotted cover, 316 SST, K 3 48206 Show
48209 Upper section Slot cover, 316 SST, 150 x 150 mm, K3 48209 Show
48211 Upper section tileable, 304 SST, K 3 48211 Show
48218 Upper section Slot design cover, 304 SST, K 3 48218 Show
48219 Upper section Slot des cov, 304 SST, Lock&Lift, K3 48219 Show
48220 Upper section Spot design cover, 304 SST, K 3 48220 Show
48221 Upper section Spot des cover, 304SST, Lock&Lift, K3 48221 Show
48225 Upper section Kessel design cover, 304 SST, L 15 48225 Show
48226 Upper section Oval design cover, 304 SST, L 15 48226 Show
48227 Upper section Oval des cover, 316SST, Lock&Lift, L15 48227 Show
48228 Upper section Oval design cover, 316 SST, L 15 48228 Show
48618 Variofix upper section Design cover Slot, 304 st., K 3 48618 Show
48619 Variofix upper section Design cover Slot, 304 st., L&L, K 3 48619 Show
48620 Variofix upper section Designrost Spot, V2A, K 3 48620 Show
48621 Variofix upper section Designrost Spot, V2A, Lock & Lift, K 3 48621 Show
48625 Variofix upper section Designrost Kessel, V2A, L 15 48625 Show
48626 Variofix upper section Designrost Oval, V2A, L 15 48626 Show
48669 Variofix upper section Designrost Oval, V4A, Lock & Lift, L 15 48669 Show
48670 Variofix upper section Designrost Oval, V4A, L 15 48670 Show
48904 Variofix upper section Kessel des cov, 304 SST, Lock&Lift, L15 48904 Show
48905 Variofix upper section Designrost Oval, V2A, Lock & Lift, L 15 48905 Show
48906 Variofix upper section tileable, 304 st., K 3 48906 Show
48928M Linearis Comfort upper section L: 750 mm, System 125, WaD, K 3 48928M Show
48929M Linearis Comfort upper section L: 850 mm, System 125, WaD, K 3 48929M Show
48930M Linearis Comfort upper section L: 950 mm, System 125, WaD, K 3 48930M Show
48931M Linearis Comfort upper section L: 1050 mm, System 125, WaD, K 3 48931M Show
48932M Linearis Comfort upper section L: 1150 mm, System 125, WaD, K 3 48932M Show
48950 Upper section Slot cover, 304 SST, 150 x 150 mm, K3 48950 Show
48963 Variofix upper section Slotted cover, 304 SST, K 3 48963 Show
  Title Item no.
  Title Item no.
48403 Extension section H: 140 mm, with glued flange 48403 Show
48404 Extension section H: 147 mm, with pressure sealing flange 48404 Show
48900 Extension section H: 120 mm, with glued flange 48900 Show
48987 Extension section H: 136 mm, without inlet 48987 Show
48989 Extension section H: 136 mm, with side inlet DN 50 48989 Show
  Title Item no.
  • Nominal size (DN) (nennweite): 100
  • Material of drain body (material_grundkoerper): PP
  • TÜV test mark (pruefzeichen): ID 1111244461
  • Socket version (stutzen_ausfuehrung): lateral
  • Odour trap (geruchsverschluss): included
