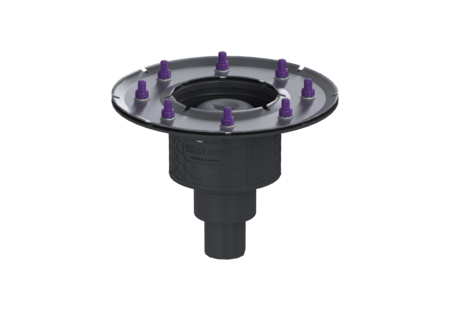

Practicus drain body
Press. fl., DN 50, Vertical outlet
KESSEL Practicus drain body, type of waterproofing, socket vertical, nominal size (DN) 50, odour trap included, drainage by Point drain, waterproofing layer upper section by Enclosed sealing collar to be glued (bd) according to DIN 18534
- Hygiene: hygienic, absolutely corrosion-free and durable material
- absolutely corrosion-free and durable material
- Fire protection: combinable with the Fire-Kit for fire and smoke protection
| Item no. | 45259 |
|---|---|
| GTIN | 4026092033807 |
| Price group | 10 |
Practicus drain body Press. fl., DN 50, Vertical outlet
In combination with an upper section, the Practicus polymer drain body is used for point drainage and is equipped with a removable odour trap and a temporary protective cover. The drain meets particular sound insulation requirements in accordance with the measurements of the Fraunhofer Institute in Stuttgart. Variant System: 125 Waterproofing layer on the upper section: Enclosed sealing collar to be glued (bd) according to DIN 18534 Waterproofing layer on the drain body: Press sealing flange (suitable for creating watertight seals) Sealing water height: 50 mm General characteristics Nominal size (DN): 50 Outer diameter (OD): 50 mm Approval: Z-19.53-2414,Z-19.17-1719 Odour trap: included Dimensions Net weight: 1,77 kg Gross weight: 2,06 kg Diameter: 273 mm Height: 207 mm Packaging dimension: length: 280 mm Packaging dimension: width: 280 mm Packaging dimension: height: 260 mm Tank/drain body Number of outlets: 1 Material of drain body: PP Socket version: vertical
| Title | Item no. | ||
|---|---|---|---|
 | Upper section Slot cover, 304 SST, 130 x 130 mm, K3 | 48165 | Show |
 | Upper section Black slotted cover , 150 x 150 mm, K 3 | 48193 | Show |
 | Upper section Kessel des cov, 304 SST, Lock&Lift, L15 | 48201 | Show |
 | Upper section Oval des cov, 304 SST, Lock&Lift, L 15 | 48202 | Show |
 | Upper section Kessel des cov, 316SST, Lock&Lift, L15 | 48203 | Show |
 | Variofix upper section Kessel des cover, 316SST, Lock&Lift, L15 | 48204 | Show |
 | Variofix upper section Slotted cover, 316 SST, K 3 | 48206 | Show |
 | Upper section Slot cover, 316 SST, 150 x 150 mm, K3 | 48209 | Show |
 | Upper section tileable, 304 SST, K 3 | 48211 | Show |
 | Upper section Slot design cover, 304 SST, K 3 | 48218 | Show |
 | Upper section Slot des cov, 304 SST, Lock&Lift, K3 | 48219 | Show |
 | Upper section Spot design cover, 304 SST, K 3 | 48220 | Show |
 | Upper section Spot des cover, 304SST, Lock&Lift, K3 | 48221 | Show |
 | Upper section Kessel design cover, 304 SST, L 15 | 48225 | Show |
 | Upper section Oval design cover, 304 SST, L 15 | 48226 | Show |
 | Upper section Oval des cover, 316SST, Lock&Lift, L15 | 48227 | Show |
 | Upper section Oval design cover, 316 SST, L 15 | 48228 | Show |
 | Variofix upper section Design cover Slot, 304 st., K 3 | 48618 | Show |
 | Variofix upper section Design cover Slot, 304 st., L&L, K 3 | 48619 | Show |
 | Variofix upper section Designrost Spot, V2A, K 3 | 48620 | Show |
 | Variofix upper section Designrost Spot, V2A, Lock & Lift, K 3 | 48621 | Show |
 | Variofix upper section Designrost Kessel, V2A, L 15 | 48625 | Show |
 | Variofix upper section Designrost Oval, V2A, L 15 | 48626 | Show |
 | Variofix upper section Designrost Oval, V4A, Lock & Lift, L 15 | 48669 | Show |
 | Variofix upper section Designrost Oval, V4A, L 15 | 48670 | Show |
 | Variofix upper section Kessel des cov, 304 SST, Lock&Lift, L15 | 48904 | Show |
 | Variofix upper section Designrost Oval, V2A, Lock & Lift, L 15 | 48905 | Show |
 | Variofix upper section tileable, 304 st., K 3 | 48906 | Show |
 | Linearis Comfort upper section L: 750 mm, System 125, WaD, K 3 | 48928M | Show |
 | Linearis Comfort upper section L: 850 mm, System 125, WaD, K 3 | 48929M | Show |
 | Linearis Comfort upper section L: 950 mm, System 125, WaD, K 3 | 48930M | Show |
 | Linearis Comfort upper section L: 1050 mm, System 125, WaD, K 3 | 48931M | Show |
 | Linearis Comfort upper section L: 1150 mm, System 125, WaD, K 3 | 48932M | Show |
 | Upper section Slot cover, 304 SST, 150 x 150 mm, K3 | 48950 | Show |
 | Variofix upper section Slotted cover, 304 SST, K 3 | 48963 | Show |
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Fire protection insert Fire-Kit 100, for DN 50, 70, 80 | 48099 | Show |
 | Extension section H: 140 mm, with glued flange | 48403 | Show |
 | Extension section H: 147 mm, with pressure sealing flange | 48404 | Show |
 | Extension section H: 120 mm, with glued flange | 48900 | Show |
 | Extension section H: 136 mm, without inlet | 48987 | Show |
 | Extension section H: 136 mm, with side inlet DN 50 | 48989 | Show |
 | Quick-Fit pipe penetration seal for core drillholes with fire protection | 48990 | Show |
 | Quick-Fit pipe penetration seal for core drillholes, w/o fire protection | 48991 | Show |
| Title | Item no. |
|---|
| Manuals | |
|---|---|
| CAD Data | |
| Approval | |
| Test Reports and Certificates |
- Nominal size (DN) (nennweite): 50
- Material of drain body (material_grundkoerper):
PP
- Socket version (stutzen_ausfuehrung):
vertical
- Odour trap (geruchsverschluss): included
